Power Meter Gauge Malfunction: Wiring Diagram

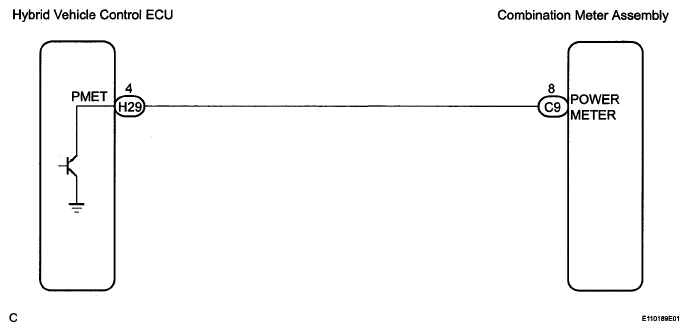

Fig 1: Power Meter Gauge - Wiring Diagram

G05280491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
