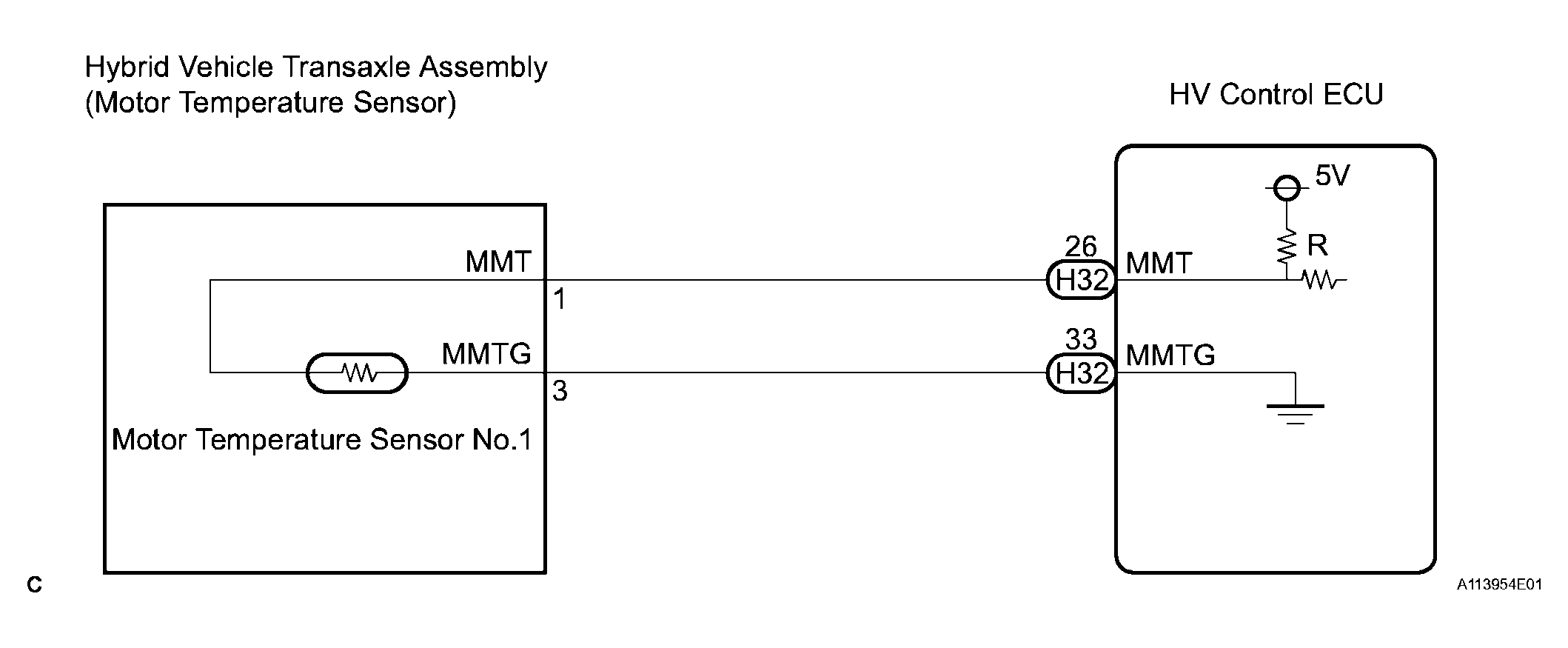

DTC P0A2C-247 Drive Motor "A" Temperature Sensor Circuit Low; DTC P0A2D-249 Drive Motor "A" Temperature Sensor Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
