DTC P0705-757 Transmission Range Sensor Circuit; DTC P0705-758 Transmission Range Sensor Circuit; DTC P0851-775 Park / Neutral Switch Input Circuit Low: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

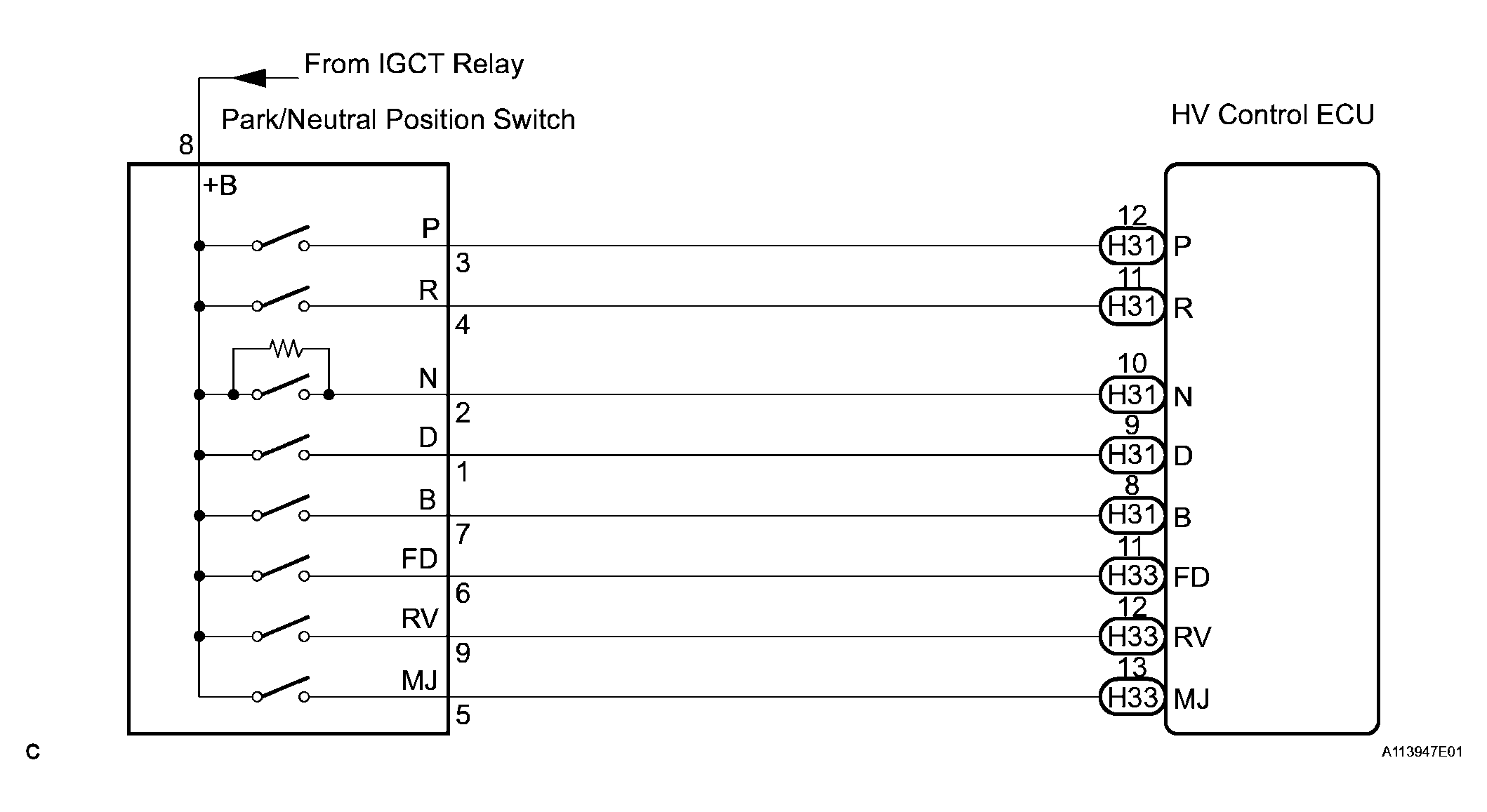

Fig 1: Park/Neutral Position - Wiring Diagram
G04111887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
