DTC P0336-137 Crankshaft Position Sensor "A" Circuit Range / Performance: Description

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

The crankshaft position sensor sends the engine speed signal (NE) to the engine CPU and HV CPU of the HV control ECU. The HV control ECU compares the input engine speed signals (NE) in the engine CPU and HV CPU. If any abnormality is found, this DTC will be output.

DTC DETECTION TROUBLE CONDITION

DTC No.	INF Code	DTC Detection Condition	Trouble Area
P0336	137	Conditions 1 and 2 continue for 1.5 seconds (1 trip detection logic): Engine speed exceeds idling speed Difference between the engine speed calculated by the engine CPU and HV CPU is 300 rpm or more	HV control ECU

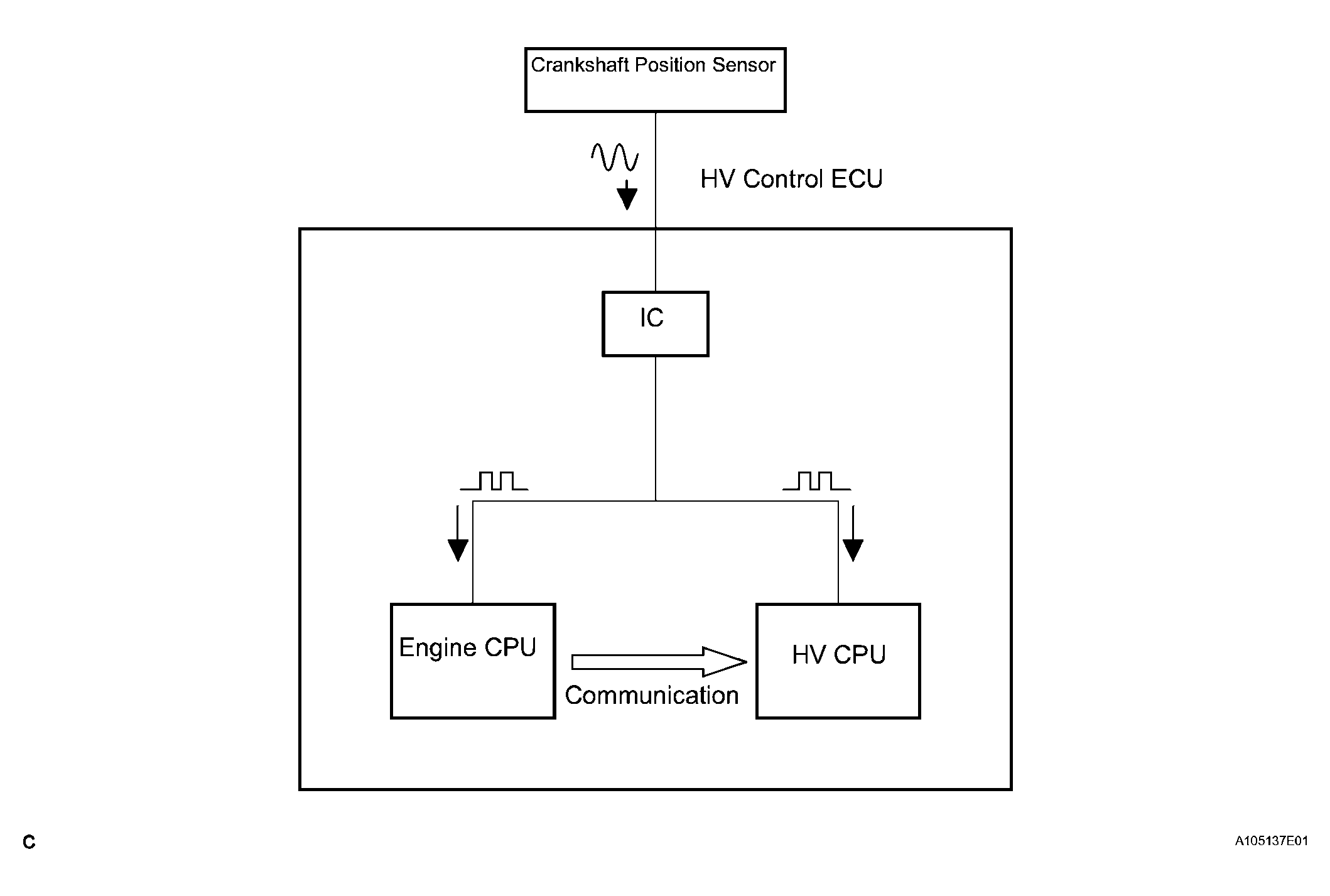

Fig 1: DTC P0336-137 Crankshaft Position Sensor "A" Circuit Range
