Rear Spoiler: Removal

REMOVE BACK DOOR TRIM BOARD (w/ Power Back Door)

Fig 1: Identifying Back Door Trim Board Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, disengage the 3 claws and remove the trim board.
  HINT:

  Tape the screwdriver tip before use.
REMOVE BACK WINDOW PANEL TRIM UPPER
1. Using a screwdriver, disengage the 7 clips and remove the trim board.
  HINT:

  Tape the screwdriver tip before use.

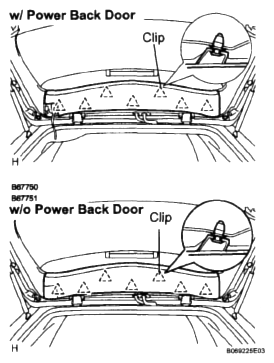

  Fig 2: Identifying Trim Board Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR TRIM COVER (w/ Power Back Door)
1. Using a screwdriver, disengage the 3 clips and trim cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 3: Identifying Back Door Trim Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SPOILER SUB-ASSEMBLY
1. Remove 5 bolts.
2. Disconnect the stop light connector.
3. Remove 3 clips and rear spoiler.

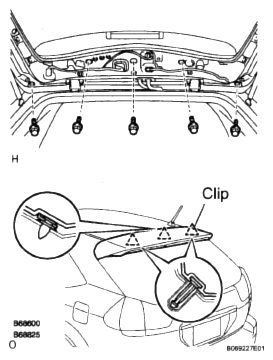

  Fig 4: Identifying Rear Spoiler Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER STOP LIGHT ASSEMBLY
1. Remove 2 screws and stop light.

  Fig 5: Identifying Center Stop Light Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
