Rear Power Point Socket: Removal
- REMOVE REAR DOOR SCUFF PLATE LH
(See REMOVAL
)
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
- REMOVE DECK BOARD SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE TONNEAU COVER ASSEMBLY
- REMOVE JACK CARRIER SUPPORT
- REMOVE JACK ASSEMBLY
- REMOVE JACK CARRIER ASSEMBLY
- REMOVE DECK FLOOR BOX FRONT
(See REMOVAL
)
- REMOVE DECK FLOOR BOX REAR
(See REMOVAL
)
- REMOVE NO.2 DECK BOARD SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE NO.3 DECK BOARD SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE BACK DOOR WEATHERSTRIP
- REMOVE DECK SIDE TRIM BOX LH
(See REMOVAL
)
- REMOVE DECK SIDE TRIM BOX RH
(See REMOVAL
)
- REMOVE REAR FLOOR FINISH PLATE
(See REMOVAL
)
- REMOVE REAR FLOOR FINISH SIDE PLATE LH
(See REMOVAL
)
- REMOVE DECK SIDE TRIM COVER LH
(See REMOVAL
)
- SEPARATE REAR NO.1 SEAT OUTER BELT ASSEMBLY LH
- Remove the bolt and separate the rear No. 1 seat outer belt assembly LH.
- REMOVE REAR SEAT SIDE COVER LH
(See REMOVAL
)
- REMOVE ROPE HOOK
(See REMOVAL
)
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
(See REMOVAL
)
- REMOVE NO.2 ROOM LIGHT ASSEMBLY
(See REMOVAL
)
- REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
(See REMOVAL
)
- REMOVE REAR POWER POINT SOCKET
- Turn the rear power point socket in counterclockwise and disengage the claw between the rear power point socket and the power point socket cover.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Push out the rear power point socket.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

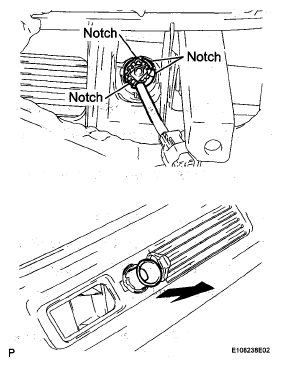

- Align the rear power point socket with the notch on the power point socket cover, and remove the rear power point socket.
- REMOVE POWER OUTLET SOCKET COVER REAR
- Disengage the 2 claws, and remove the power outlet socket cover rear.
