Power Point Socket: Components

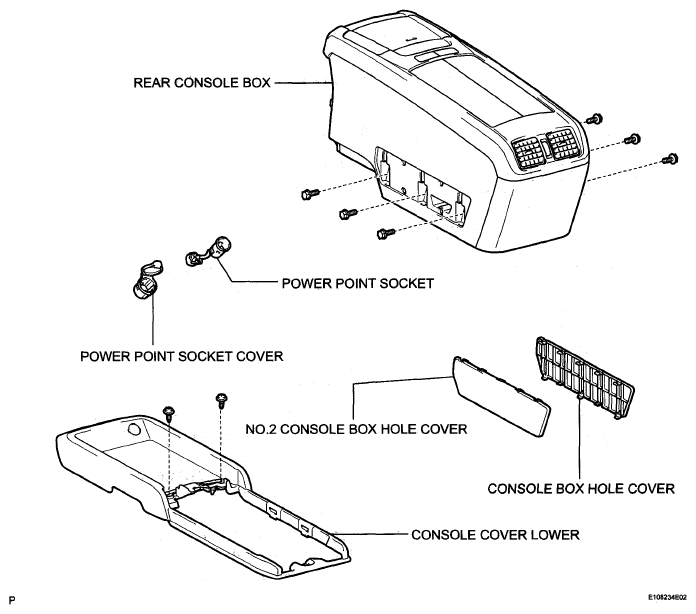

Fig 1: Identifying Power Point Socket Replacement Components

G05274214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
