Washer Nozzle (for Front Side)

WIPER / WASHER: WASHER NOZZLE (for Front Side): ON-VEHICLE INSPECTION


1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

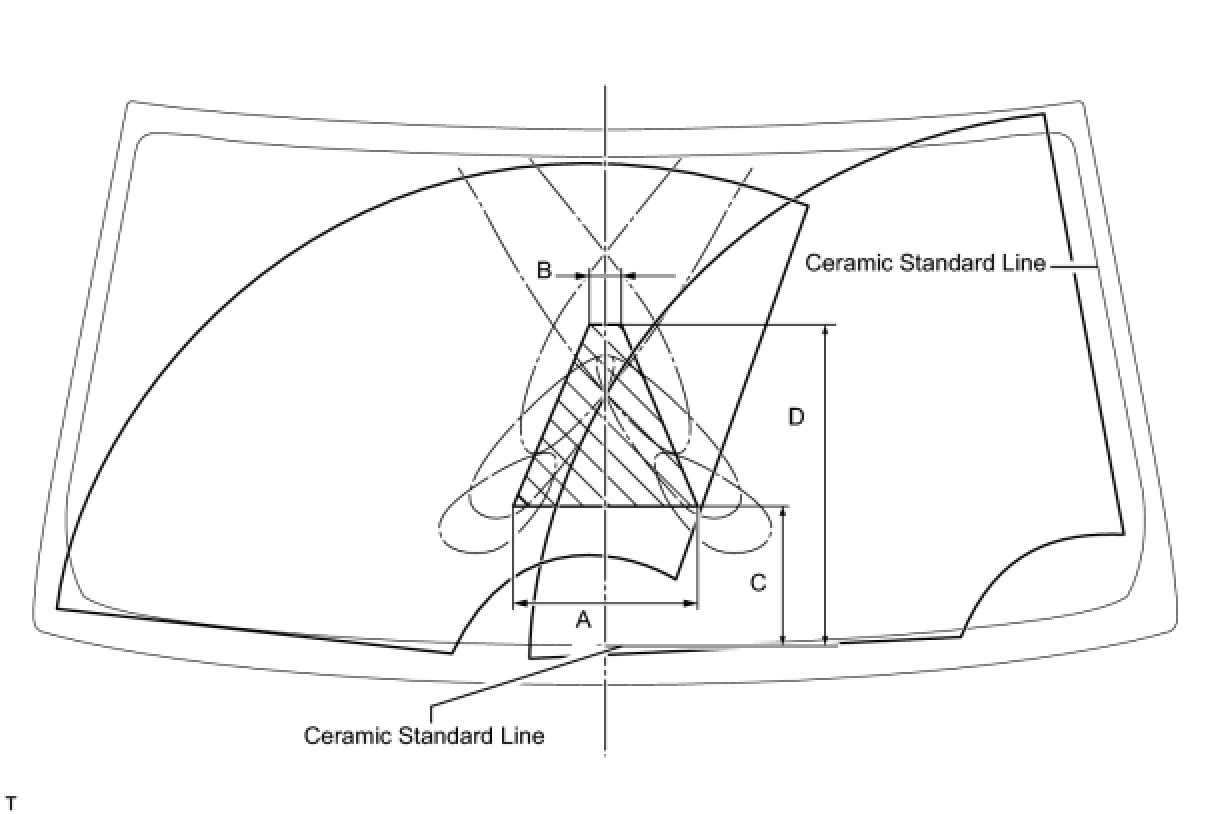

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.
OK:
Washer fluid hits the windshield in the area shown in the illustration.
If the result is not as specified, replace the washer nozzle.

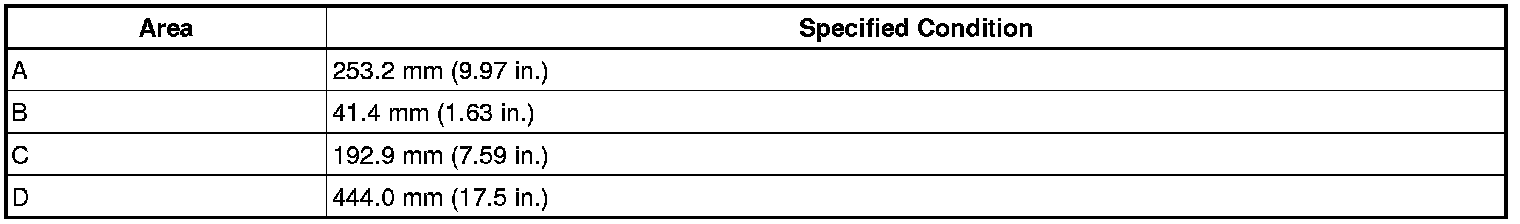

Standard:
