Removal

WIPER / WASHER: WASHER NOZZLE (for Rear Side): REMOVAL


1. REMOVE CENTER BACK DOOR GARNISH Disassembly

2. REMOVE BACK DOOR GLASS CHANNEL LH (w/o Power Back Door) Removal

3. REMOVE BACK DOOR GLASS CHANNEL RH (w/o Power Back Door) Removal

4. REMOVE REAR SPOILER SUB-ASSEMBLY Removal

5. REMOVE REAR WASHER NOZZLE

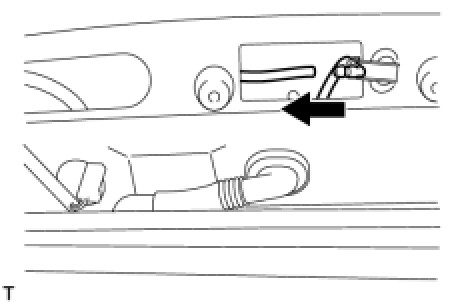

(a) Disconnect the washer hose.






(b) Detach the 2 claws and remove the rear washer nozzle.
