Installation

WIPER / WASHER: WASHER NOZZLE (for Rear Side): INSTALLATION

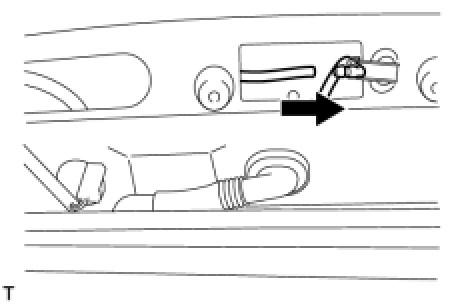

1. INSTALL REAR WASHER NOZZLE





(a) Attach the 2 claws to install the rear washer nozzle.






(b) Connect the washer hose.
2. INSTALL REAR SPOILER SUB-ASSEMBLY Installation

3. INSTALL BACK DOOR GLASS CHANNEL LH (w/o Power Back Door) Installation

4. INSTALL BACK DOOR GLASS CHANNEL RH (w/o Power Back Door) Installation

5. INSTALL CENTER BACK DOOR GARNISH Reassembly
