Installation

WIPER / WASHER: WASHER NOZZLE (for Front Side): INSTALLATION


1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
HINT:
Use the same procedures to install the other washer nozzle.

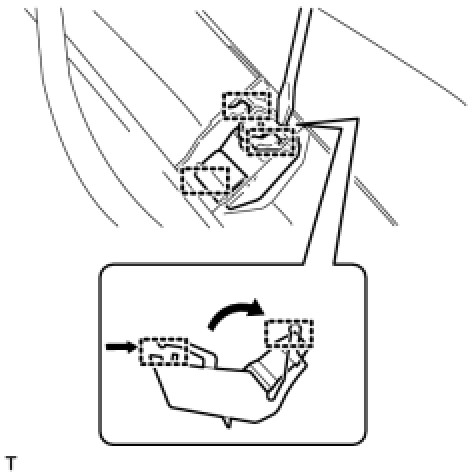

(a) Attach the 3 clamps to install the washer nozzle.
(b) Connect the hose.
2. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

3. INSTALL HOOD TO COWL TOP SEAL Installation

4. INSTALL FRONT FENDER MAIN SEAL LH Installation

5. INSTALL FRONT FENDER MAIN SEAL RH Installation

6. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. INSTALL FRONT WIPER ARM LH Installation

9. INSTALL FRONT WIPER ARM RH Installation

10. INSTALL ENGINE ROOM SIDE COVER LH Installation

11. INSTALL ENGINE ROOM SIDE COVER RH Installation
