Windshield Washer Spray Nozzle: Adjustments

WIPER / WASHER: WASHER NOZZLE (for Front Side): ADJUSTMENT


1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

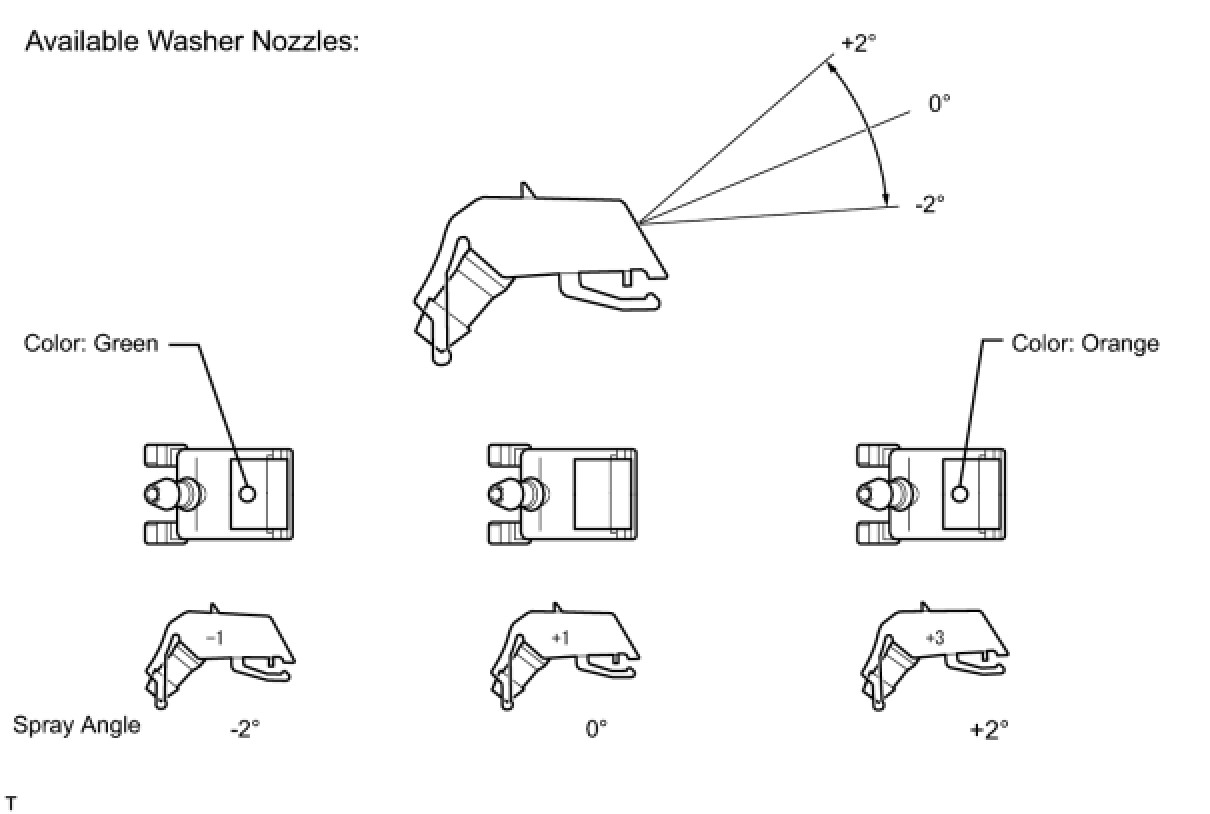

(a) Select a washer nozzle so that the contact area is within the standard area. Replace the washer nozzle with the selected one.
