Washer Motor (for Rear Side)

WIPER / WASHER: WASHER MOTOR (for Rear Side): INSPECTION


1. INSPECT REAR WASHER MOTOR AND PUMP ASSEMBLY
HINT:
This inspection should be performed with the rear washer motor and pump assembly installed to the washer jar.





(a) Fill the washer jar with washer fluid.

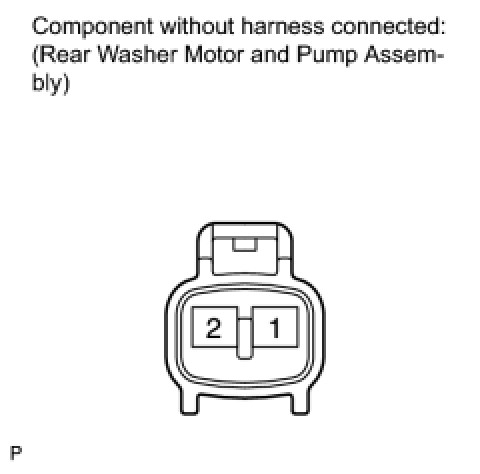

(b) Apply battery voltage to the washer motor and check the operation of the washer motor and pump assembly.

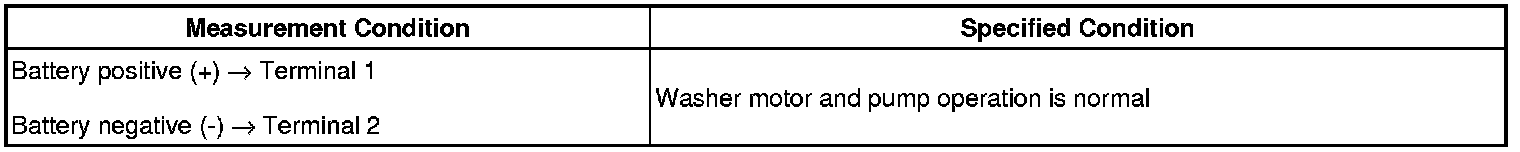

OK:





If the result is not as specified, replace the rear washer motor and pump assembly.
