Installation

WIPER / WASHER: WASHER MOTOR (for Rear Side): INSTALLATION


1. INSTALL REAR WASHER MOTOR AND PUMP ASSEMBLY

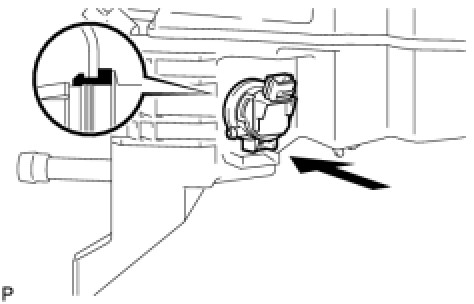

(a) Install the washer motor together with the gasket in the direction shown in the illustration.
HINT:
Make sure the gasket is positioned as shown in the illustration.

(b) Connect the connector.
2. INSTALL WINDSHIELD WASHER JAR ASSEMBLY Installation

3. INSTALL WASHER INLET SUB-ASSEMBLY Installation

4. FILL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID Installation

5. INSTALL FRONT FENDER LINER LH Installation

6. INSTALL SIDE STEP ASSEMBLY Installation

7. INSTALL HEIGHT CONTROL PROTECTOR PIPE Installation

8. INSTALL FRONT FENDER MUDGUARD LH Installation

9. INSTALL ENGINE ROOM SIDE COVER LH Installation
