Installation

WIPER / WASHER: HEADLIGHT CLEANER ACTUATOR: INSTALLATION

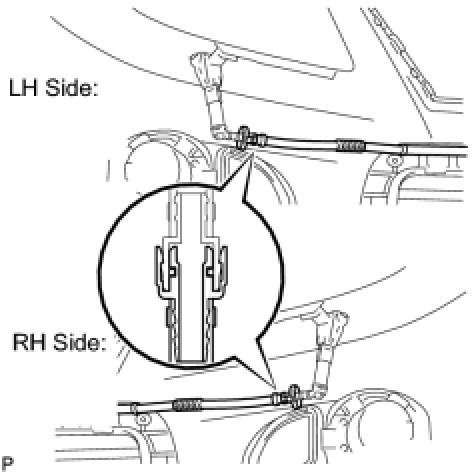

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH
HINT:
Use the same procedures for the RH side and LH side.

(a) Attach the 2 claws.

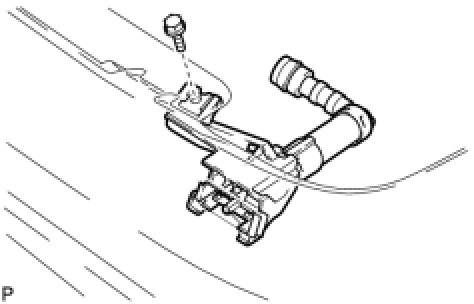

(b) Install the headlight washer actuator sub-assembly with the bolt.
Torque: 1.1 Nm (11 kgf-cm, 10 in-lbf)

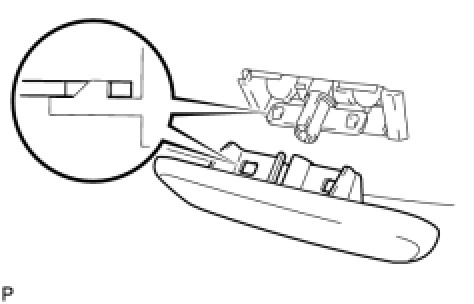

(a) Attach the 2 claws to install the headlight washer nozzle.

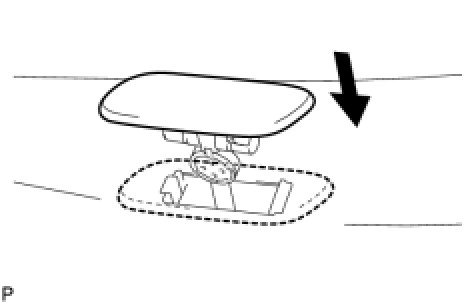

(b) Return the headlight washer nozzle to its original position.
3. INSTALL TYPE1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH
HINT:
Use the same procedures described for the LH side

4. INSTALL FRONT BUMPER COVER Installation

5. INSTALL RADIATOR GRILLE Installation

6. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. INSTALL ENGINE ROOM SIDE COVER RH Installation

9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation
