Front Wiper and Washer

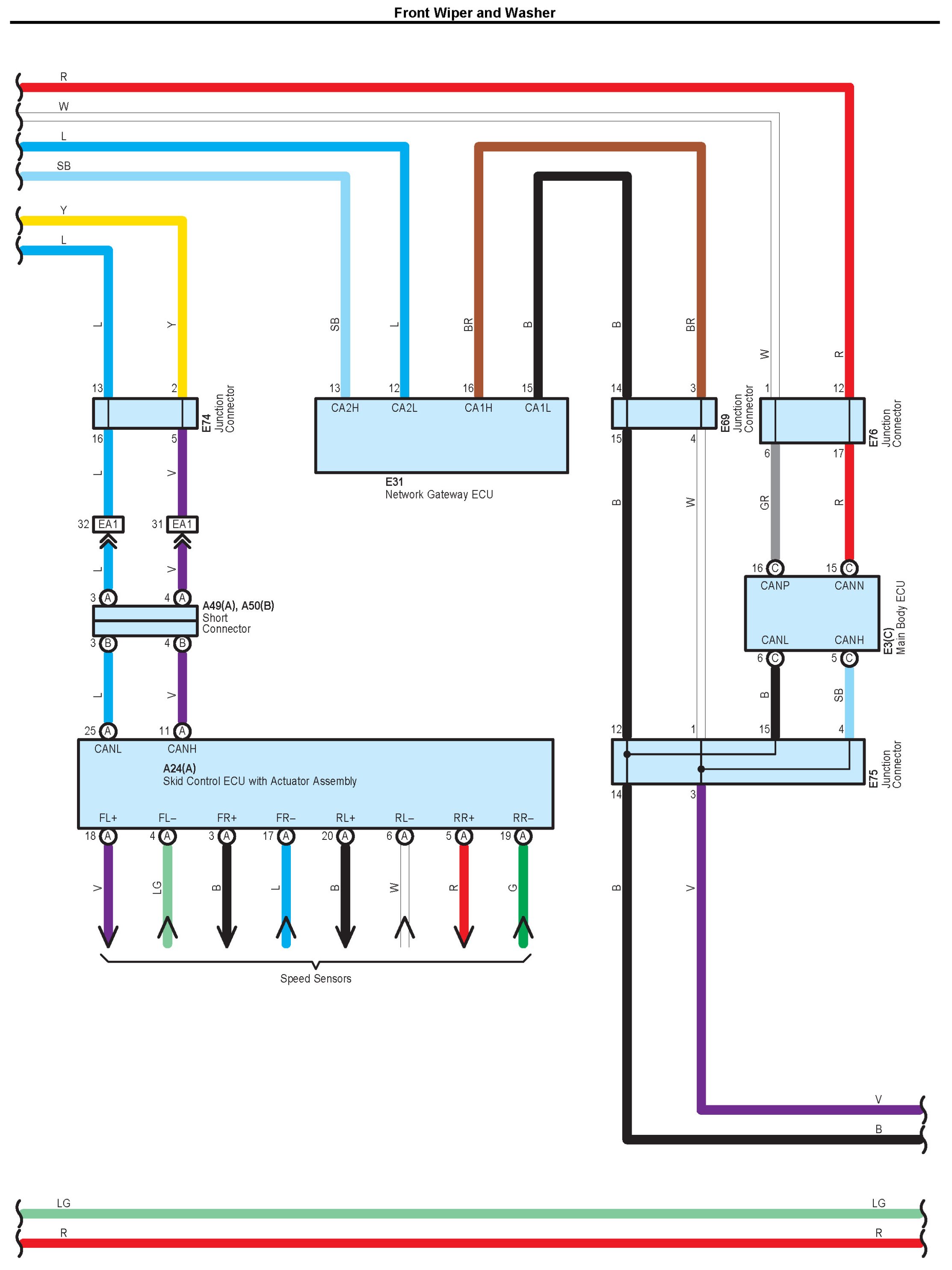

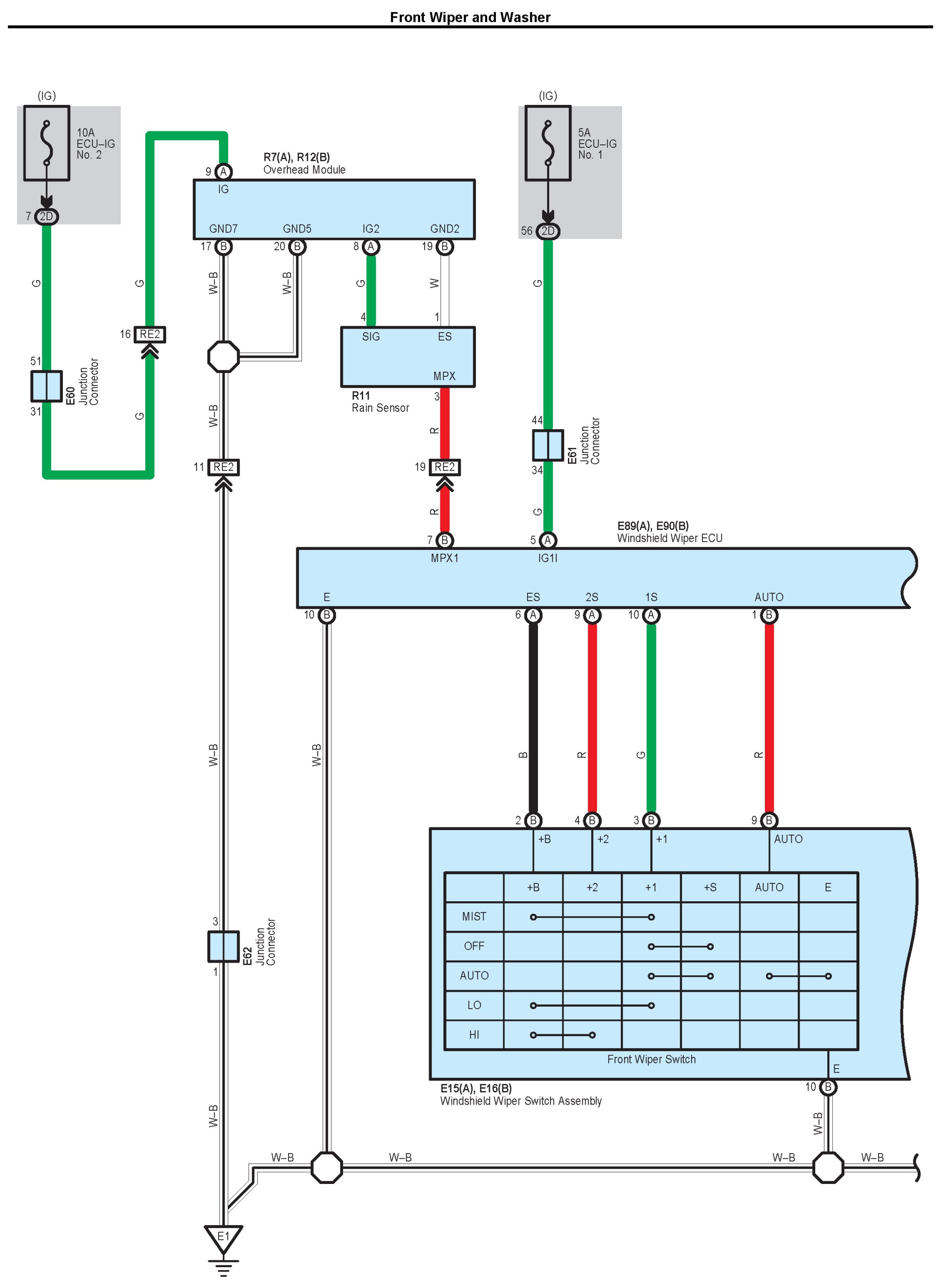

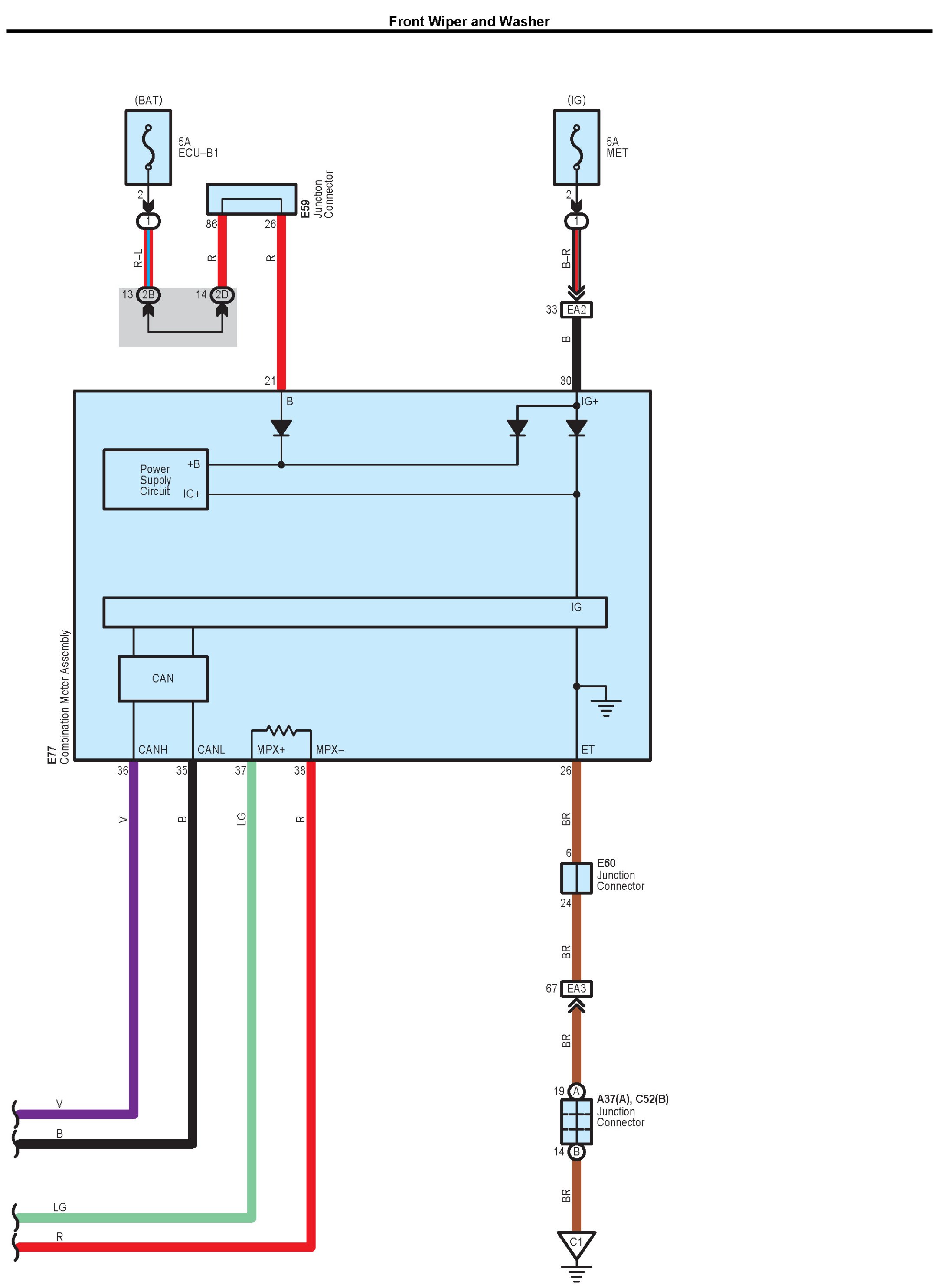

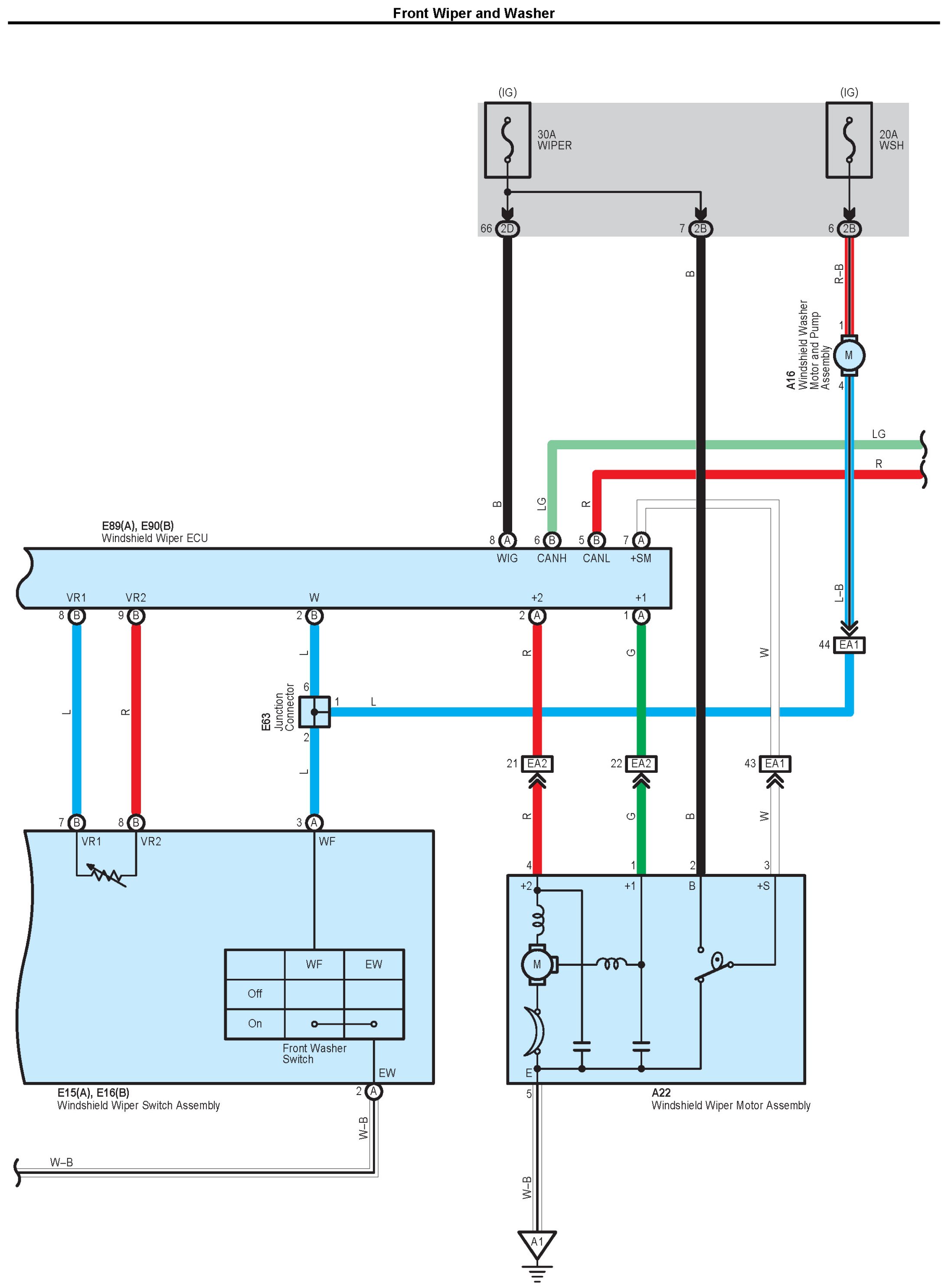

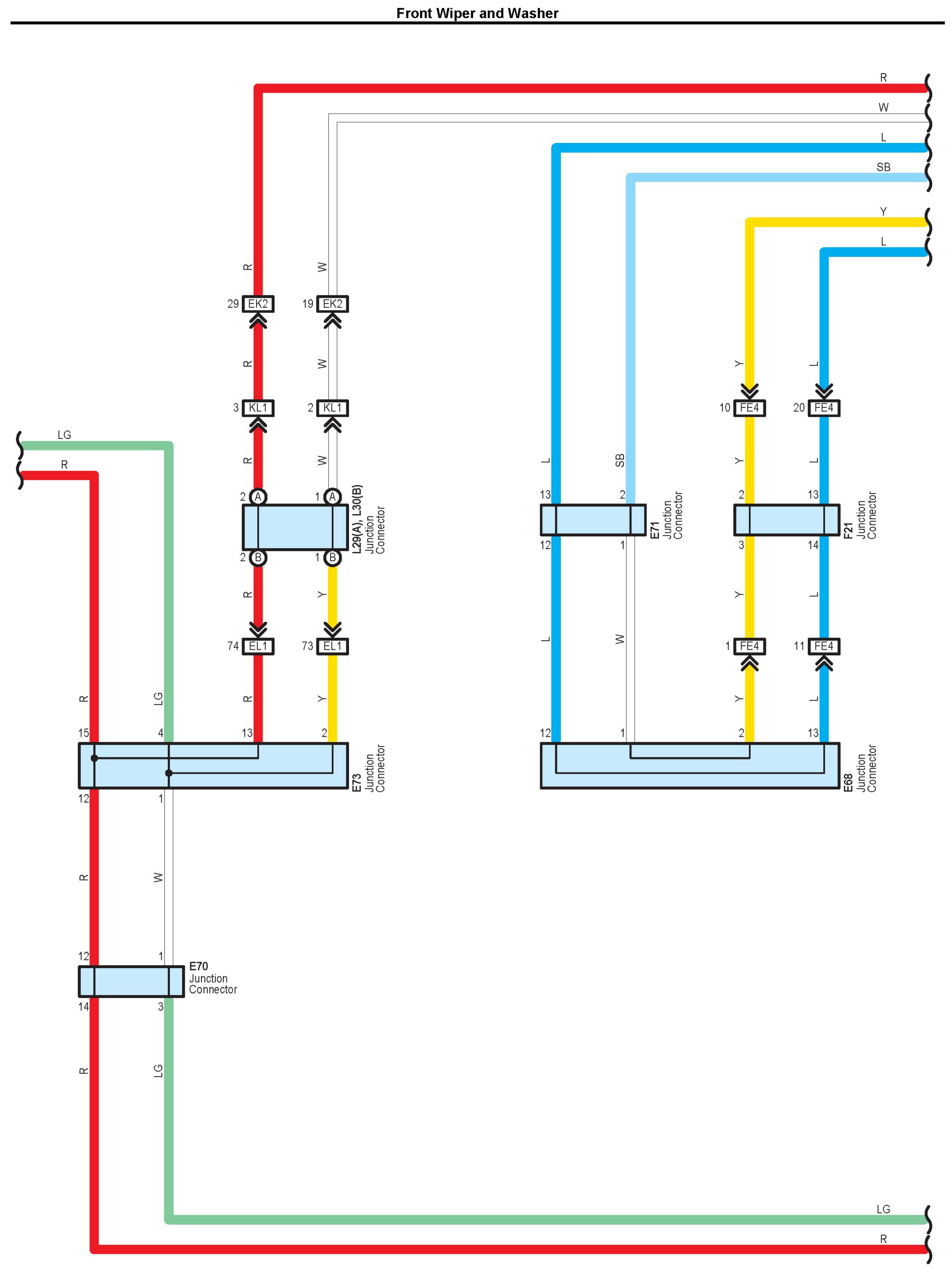

Front Wiper and Washer Part 1:

Front Wiper and Washer Part 2:

Front Wiper and Washer Part 3:

Front Wiper and Washer Part 4:

Front Wiper and Washer Part 5:

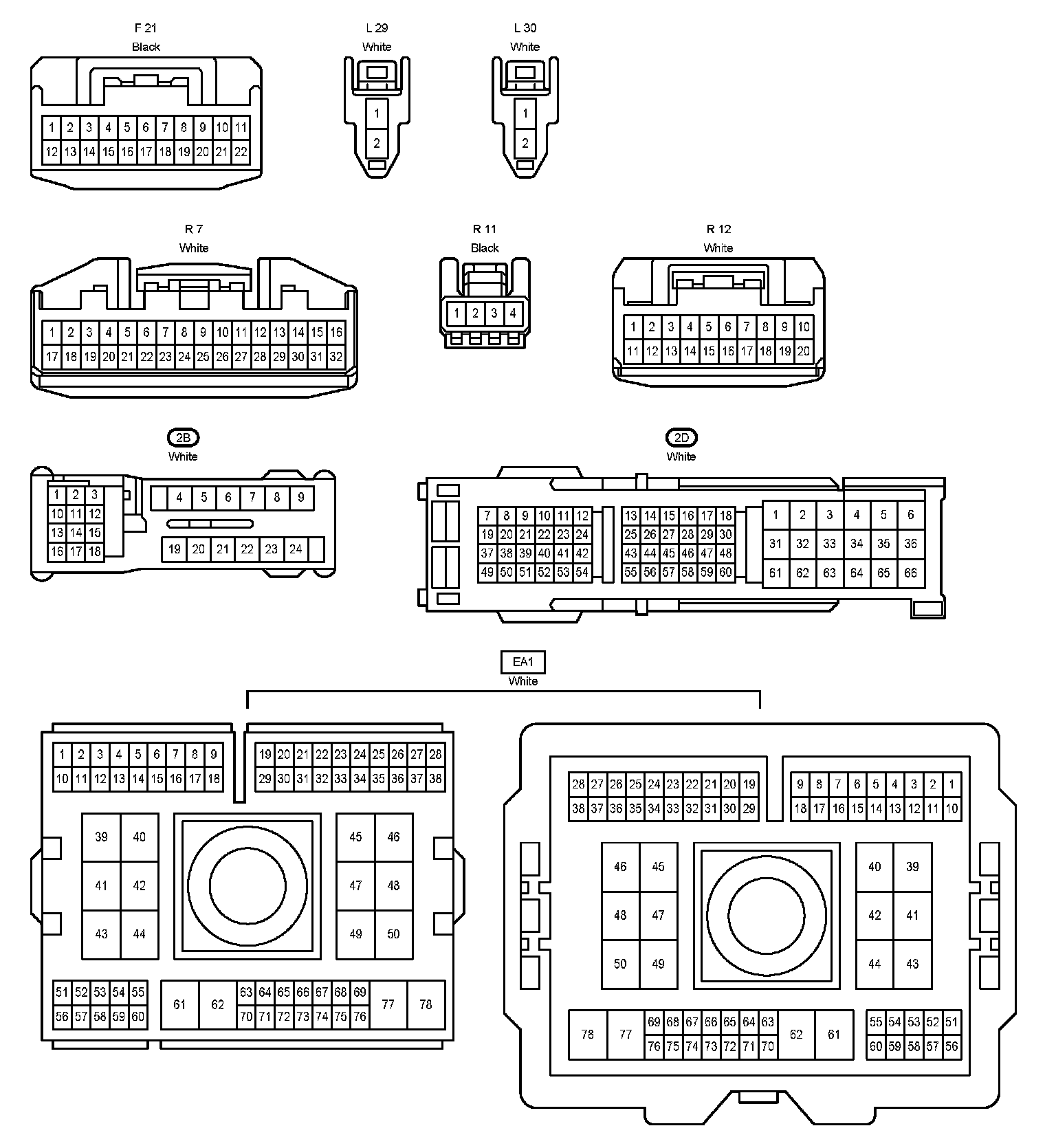

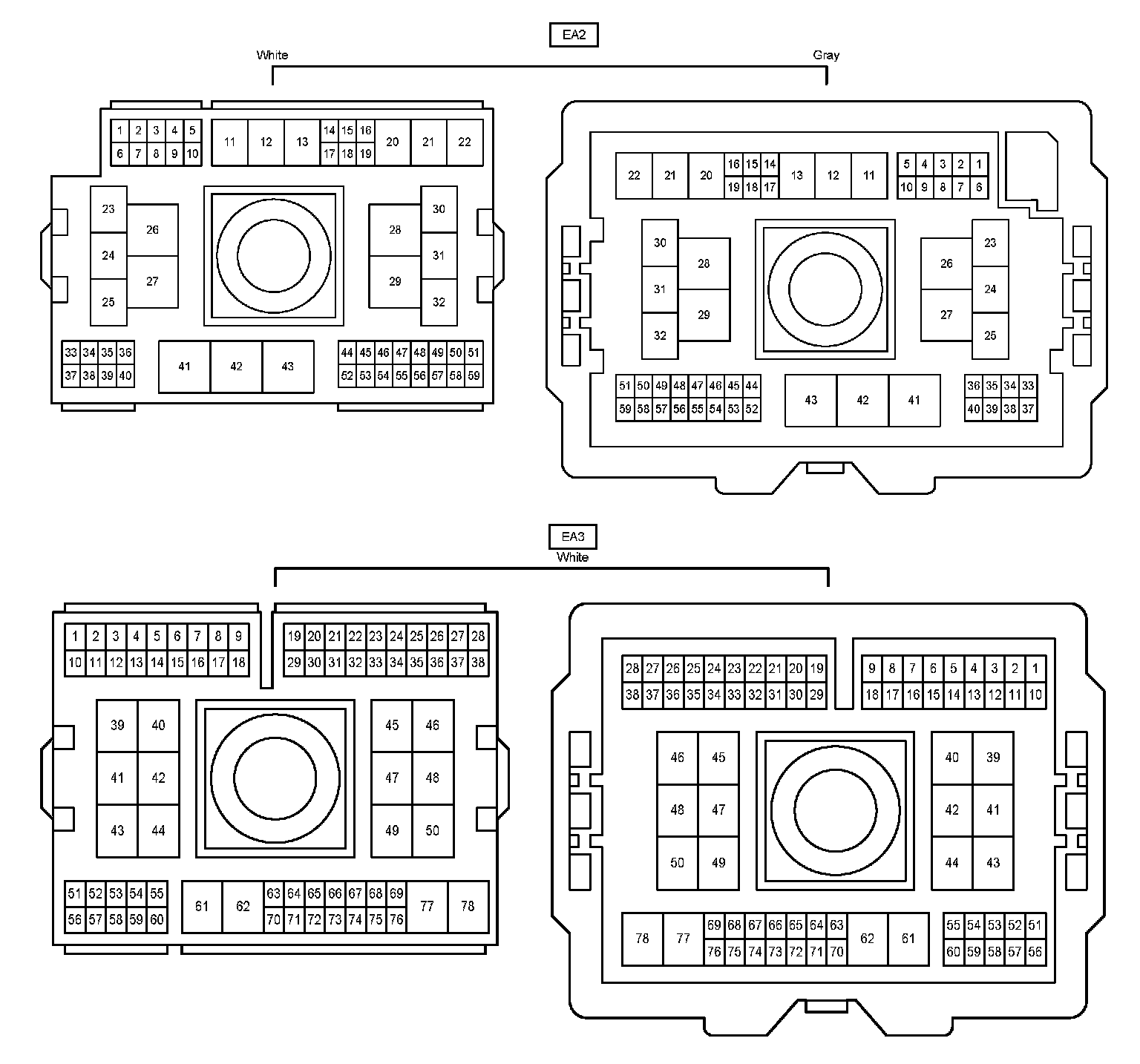

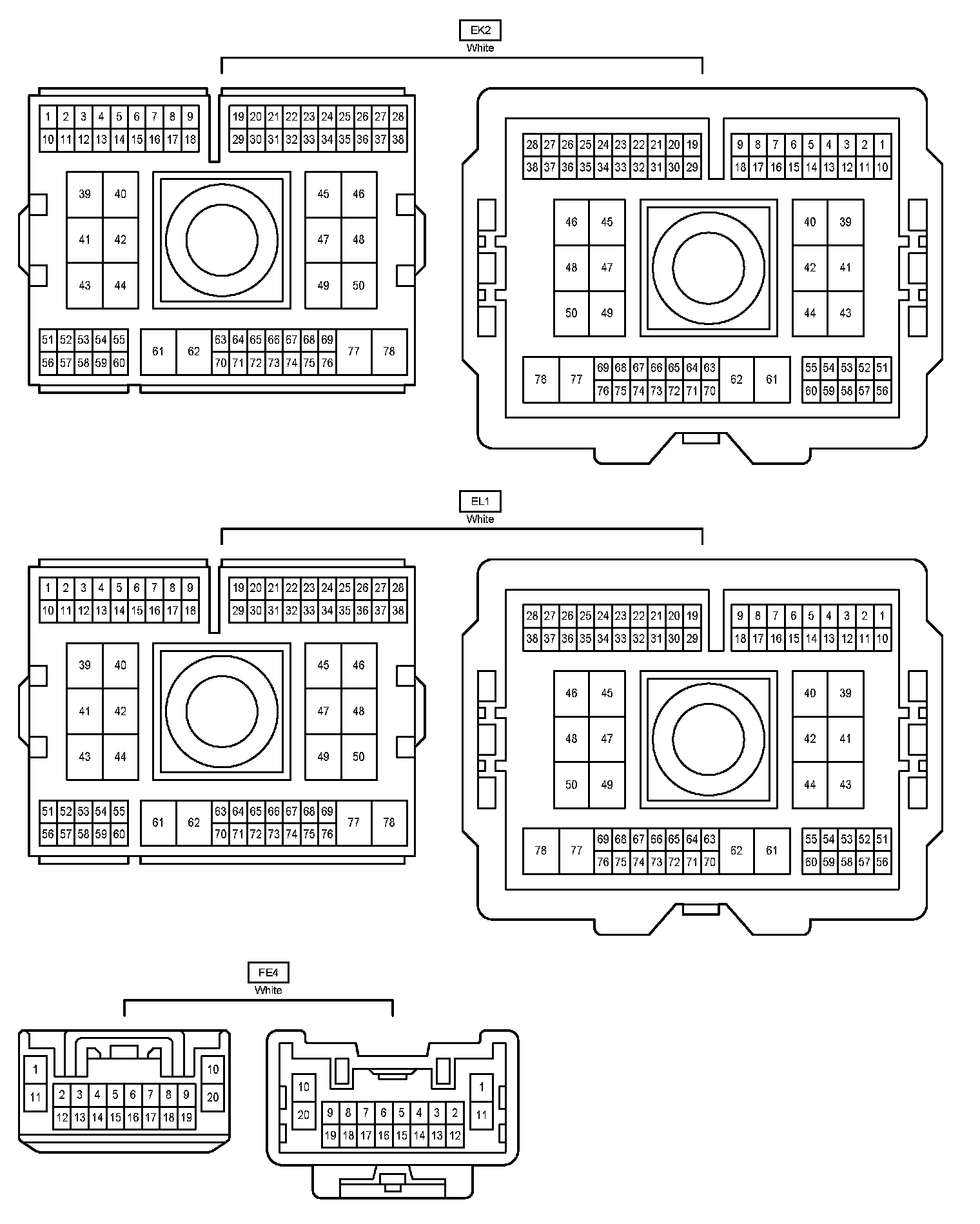

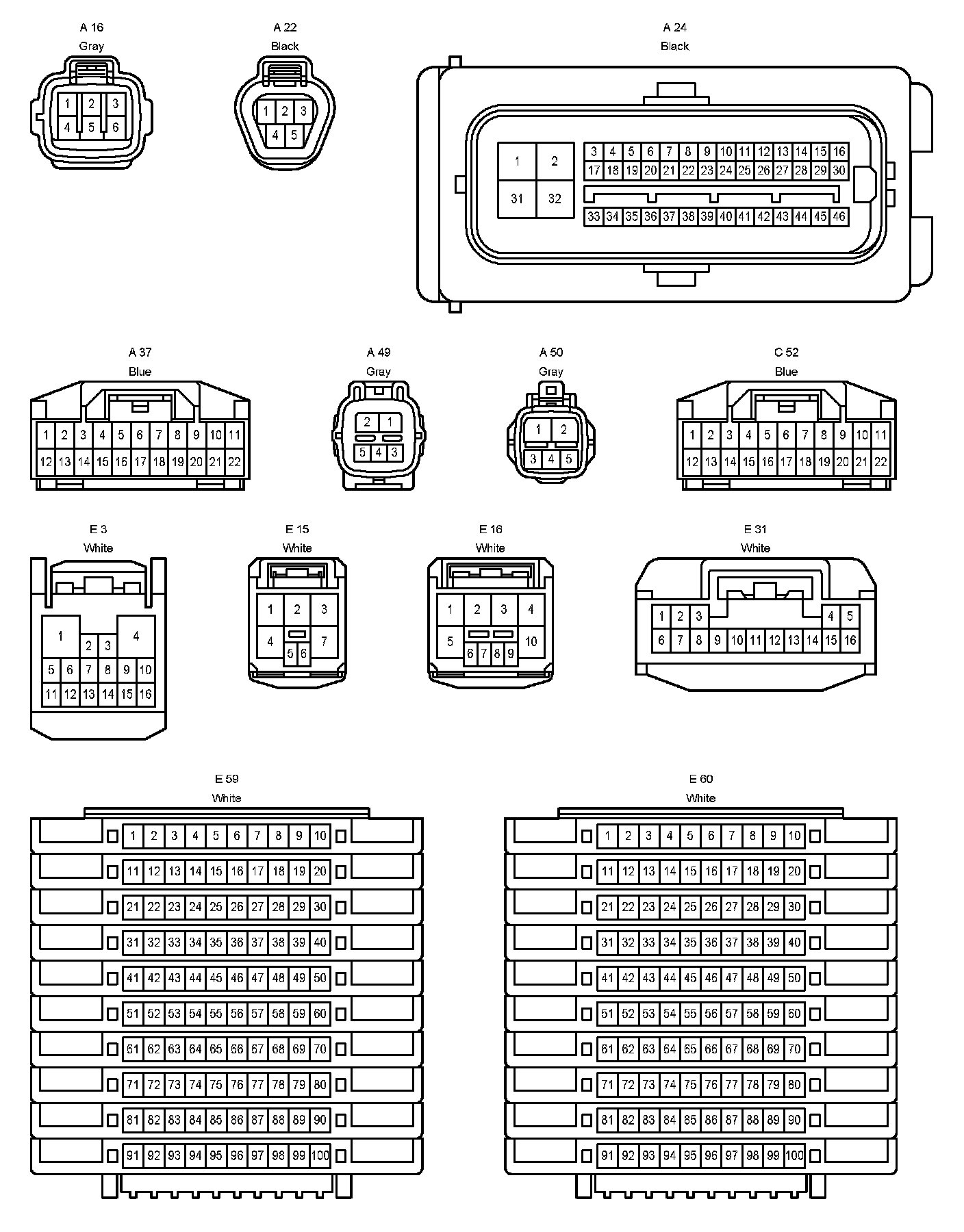

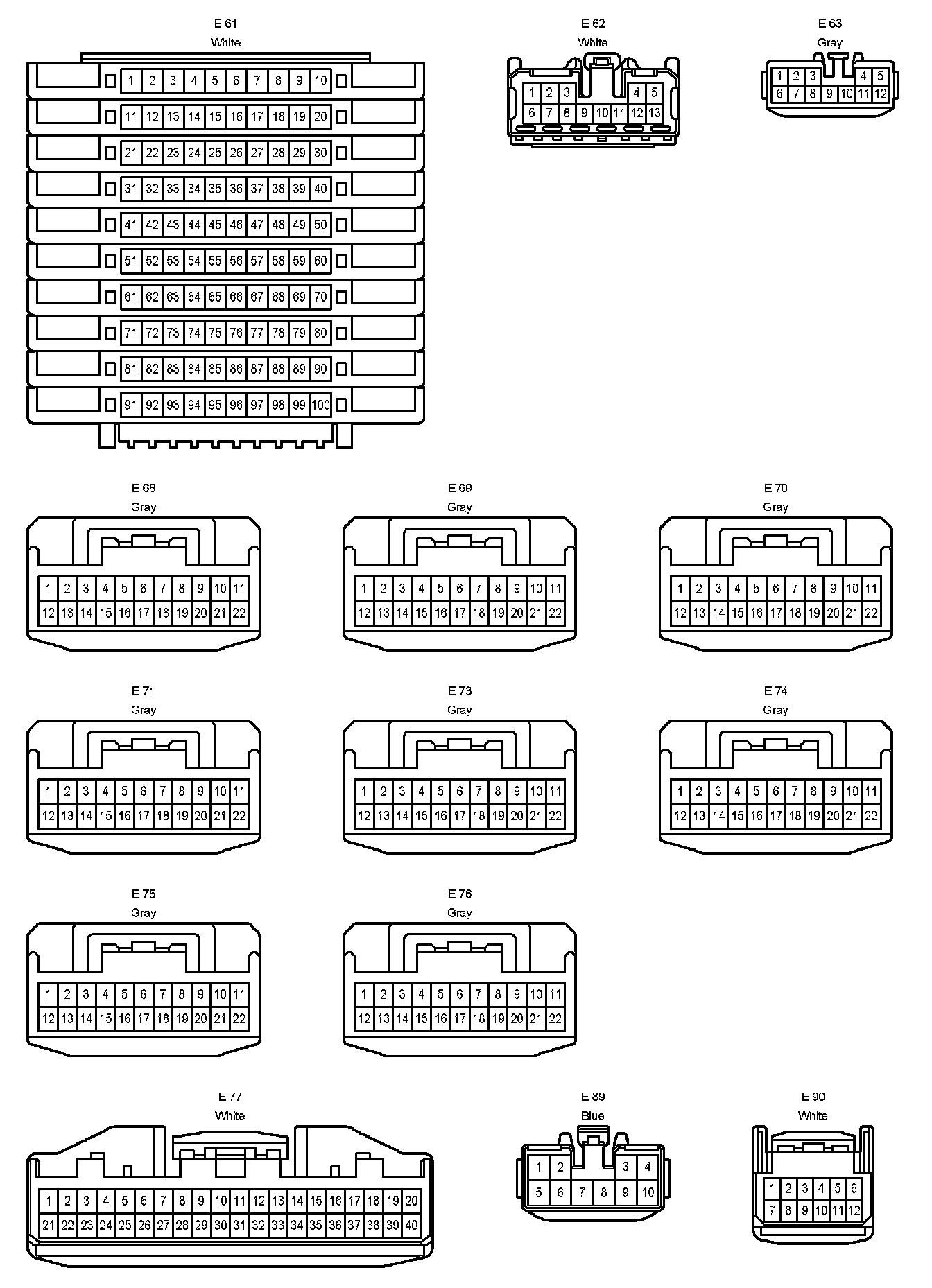

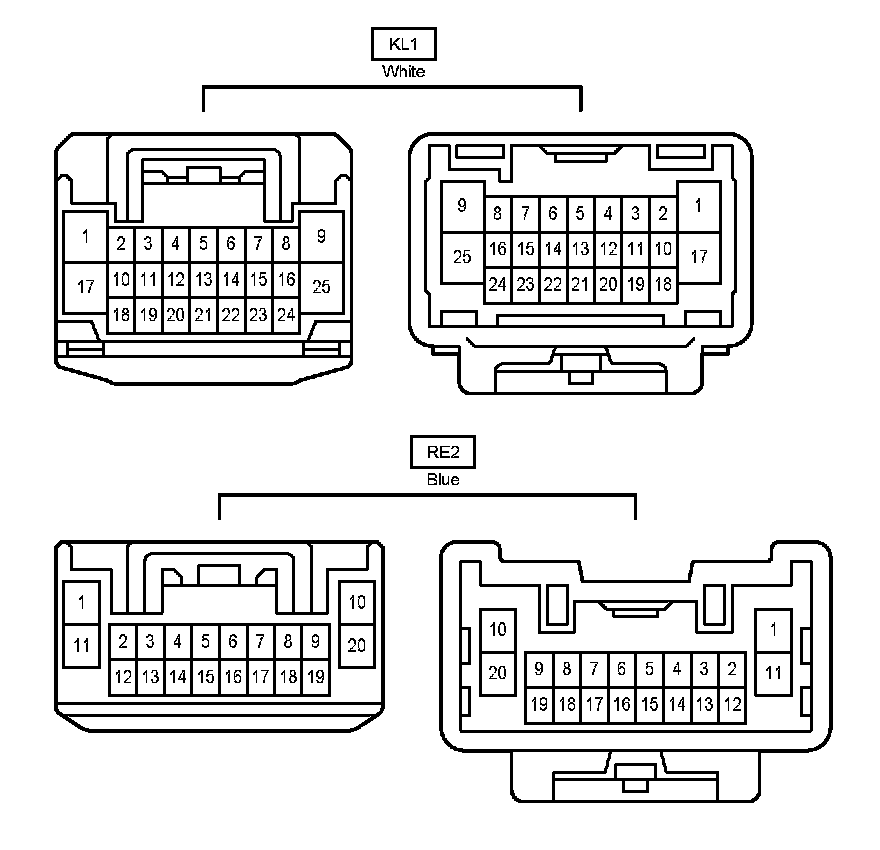

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
