Rear Power Window Switch

WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSPECTION

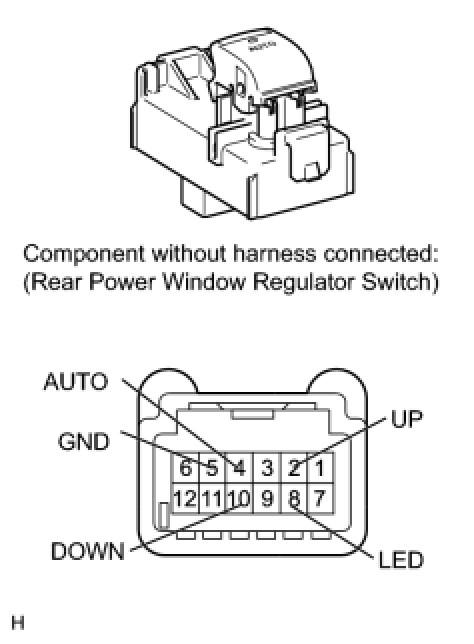

1. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

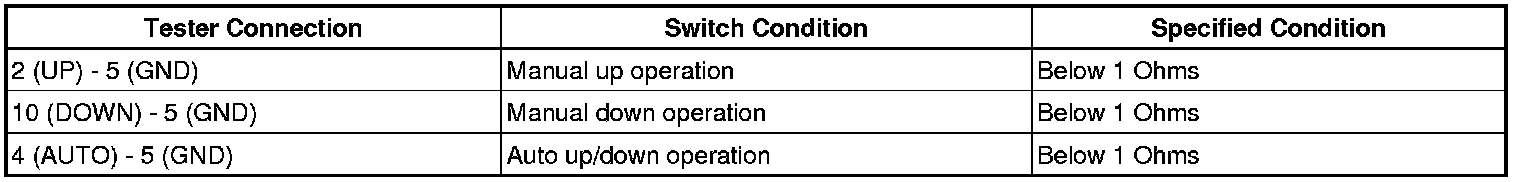

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





- If the result is not as specified, replace the rear power window regulator switch assembly.

(b) Check that the LED illuminates.

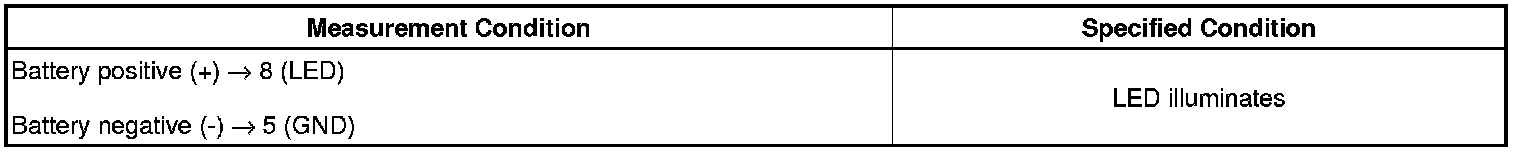

(1) Apply battery voltage to the regulator switch and check that the LED illuminates.
OK:





- If the result is not as specified, replace the rear power window regulator switch assembly.
