Power Window Master Switch

WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSPECTION

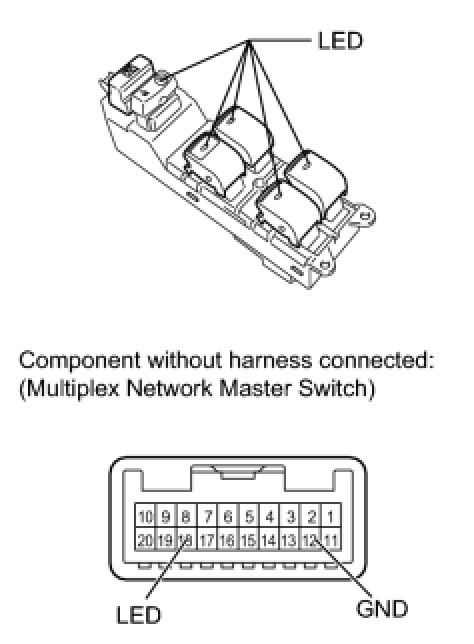

1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a) Check that the LED illuminates.

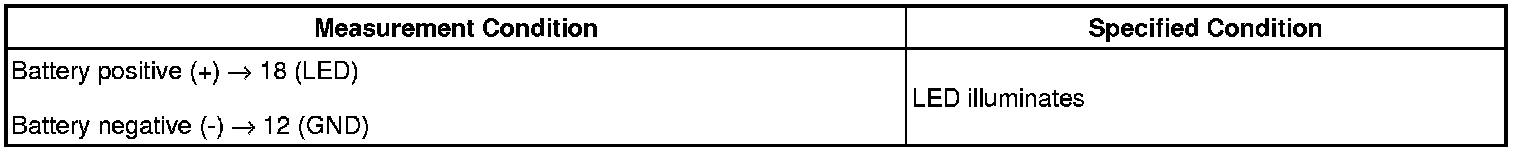

(1) Apply battery voltage to the master switch and check that the LED illuminates.
OK:





- If the result is not as specified, replace the multiplex network master switch assembly.
