Windshield Deicer System

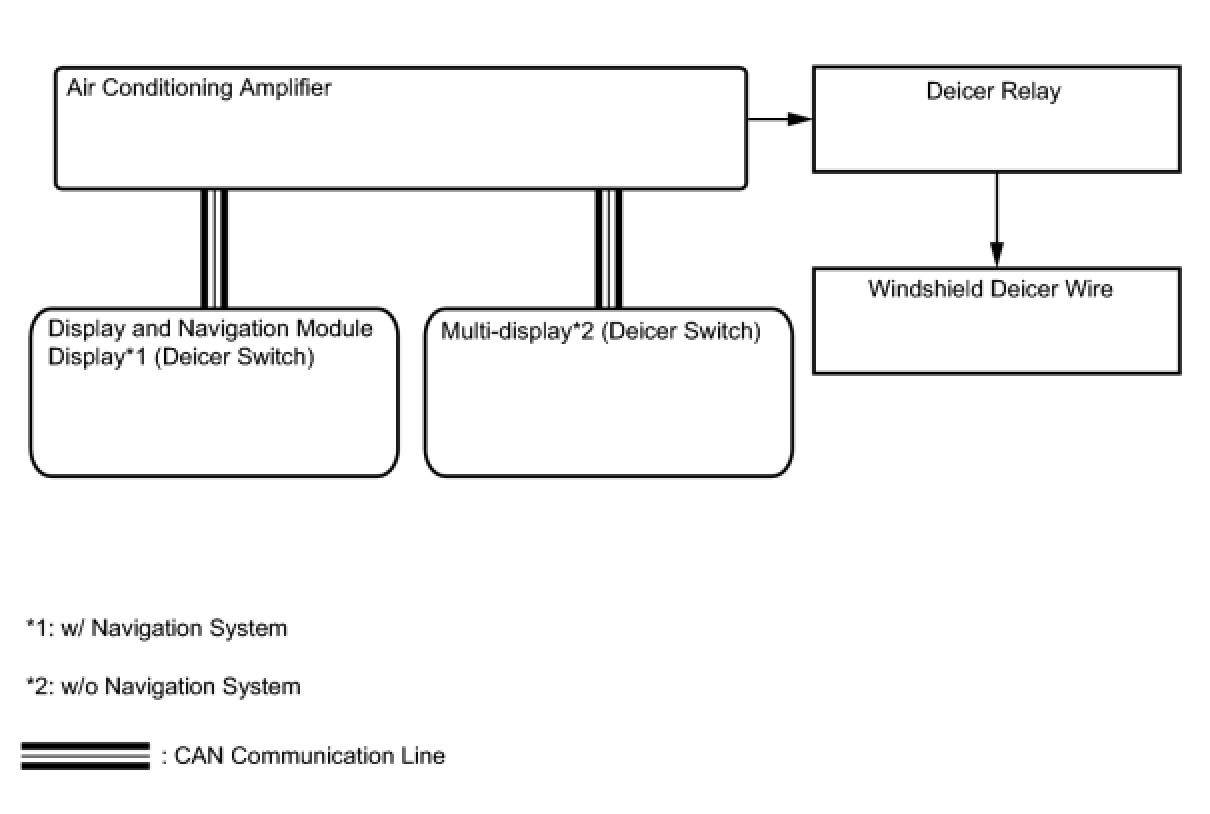

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM

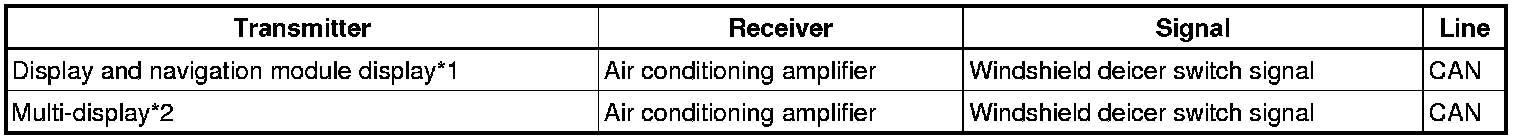

Communication Table





*1: w/ Navigation System
*2: w/o Navigation System

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION


1. GENERAL
The thin heater wires of the windshield deicer system are attached to the inside of the windshield glass and deice the windshield surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

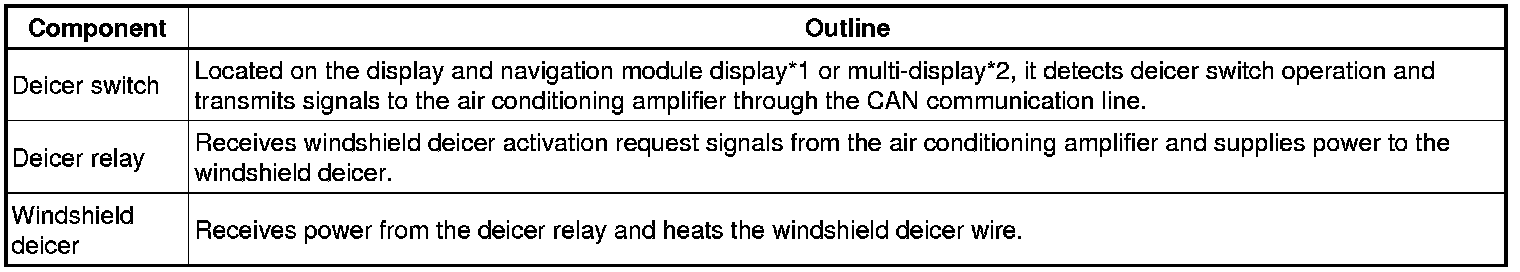

2. FUNCTION OF MAIN COMPONENT






*1: w/ Navigation System
*2: w/o Navigation System

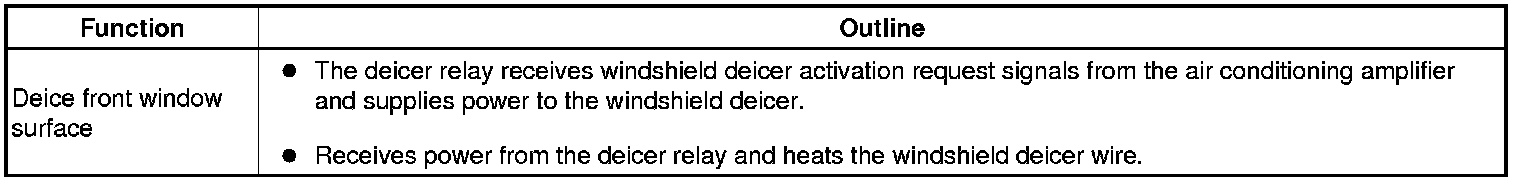

3. DESCRIPTION
