Service Data









SPECIFICATIONS: JF2A TRANSFER / 4WD / AWD: SERVICE DATA

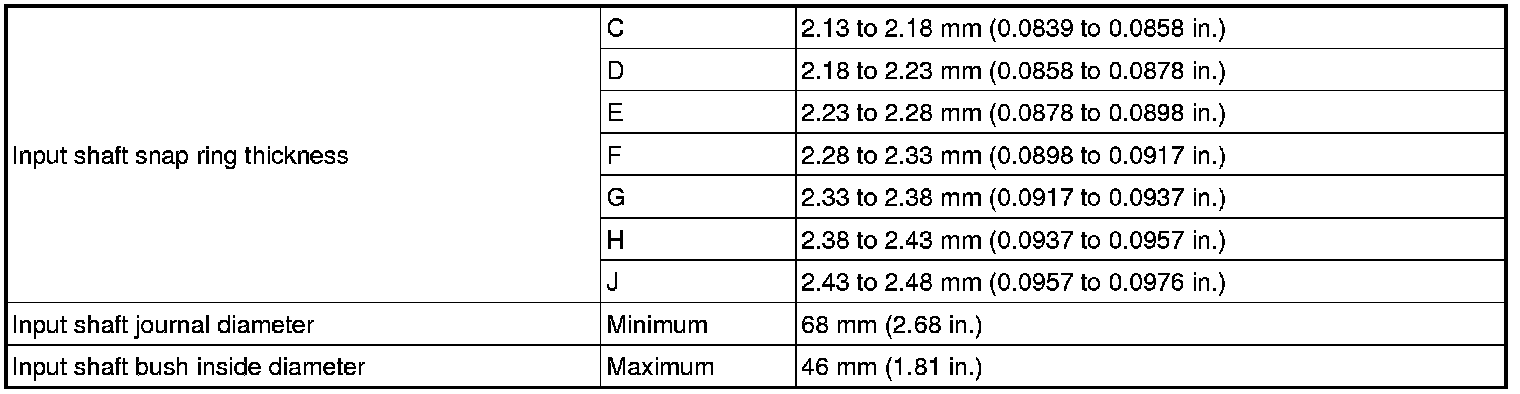

Input Shaft

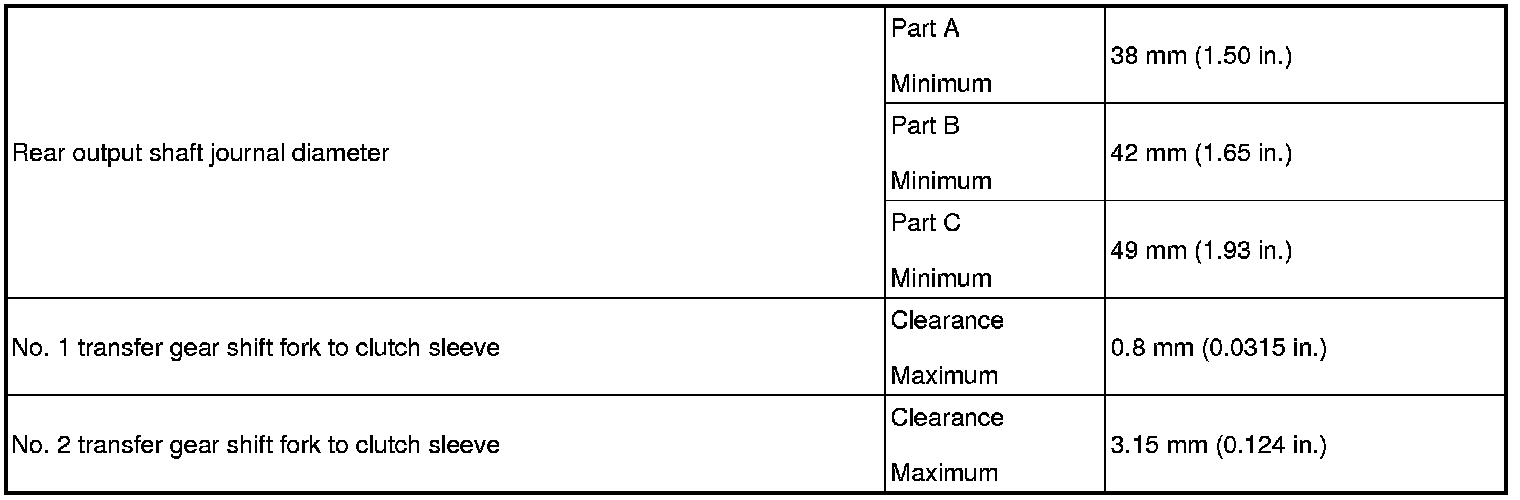

Rear Output Shaft

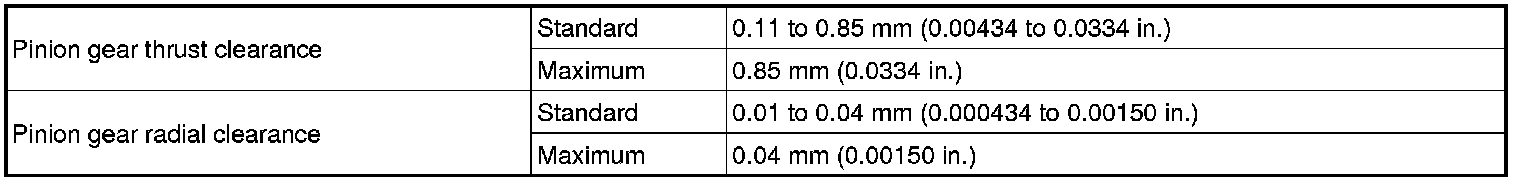

Planetary Gear





Synchronizer Ring





Transfer Drive Sprocket
