Replacement

JF2A TRANSFER / 4WD / AWD: TRANSFER CASE FRONT OIL SEAL: REPLACEMENT

1. DRAIN TRANSFER OIL Service and Repair

2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY
(a) Remove the front propeller shaft Removal.
3. REMOVE FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY Disassembly

4. REMOVE TRANSFER CASE FRONT OIL SEAL

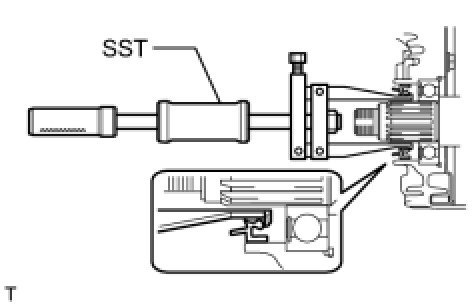

(a) Using SST, tap out the oil seal.
SST: 09308-00010
NOTICE:
Be careful not to damage the oil seal and front transfer case contact surface.

5. INSTALL TRANSFER CASE FRONT OIL SEAL
(a) Apply transfer oil to the spline of the driven sprocket.

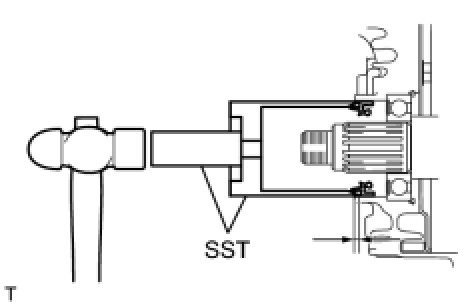

(b) Using SST and a hammer, tap in a new oil seal until its surface is 1 to 1.5 mm (0.0394 to 0.0590 in.) from the case upper surface.
SST: 09649-17010
SST: 09950-70010
09951-07150
6. INSTALL FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY Reassembly

7. INSTALL FRONT PROPELLER SHAFT ASSEMBLY
(a) Install the front propeller shaft Installation.
8. ADD TRANSFER OIL Service and Repair

9. CHECK FOR TRANSFER OIL LEAK
