Torque Specifications









SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

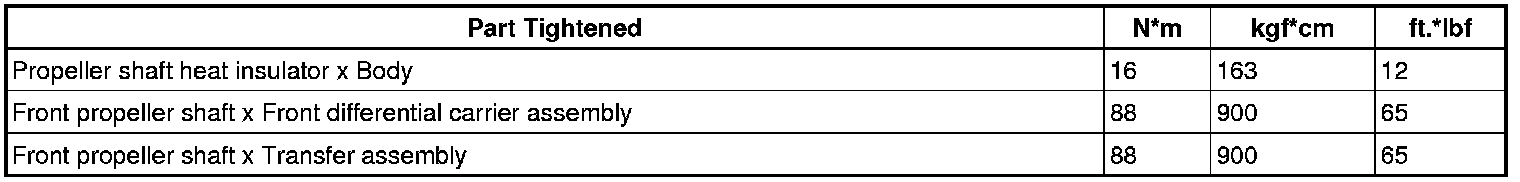

Front Propeller Shaft Assembly

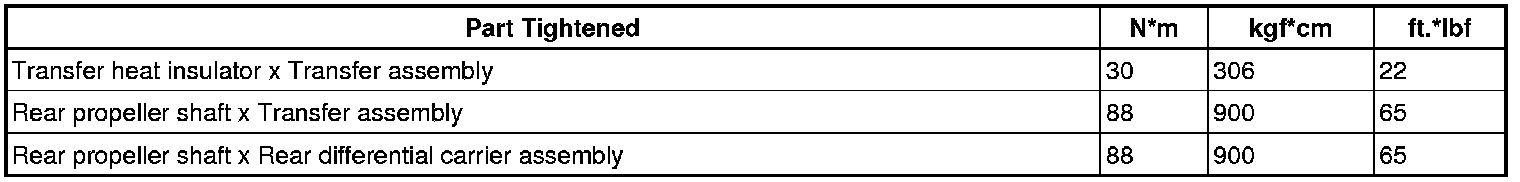

Rear Propeller Shaft Assembly
