Front Propeller Shaft Assembly

DRIVE SHAFT / PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY: INSPECTION

1. INSPECT FRONT PROPELLER SHAFT ASSEMBLY

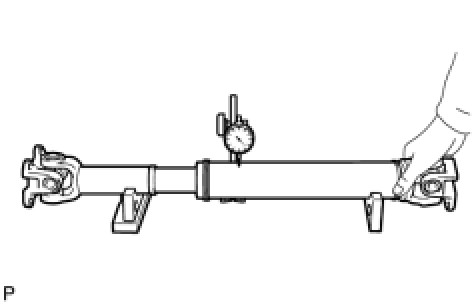

(a) Using a dial indicator, measure the propeller shaft runout.
Maximum runout:
0.8 mm (0.0315 in.)
If the shaft runout is more than the maximum, replace the shaft.
2. INSPECT SPIDER BEARING
NOTICE:
Be careful not to grip the propeller shaft tube too tightly in a vise as this will cause deformation.





(a) Check the spider bearings for wear or damage.

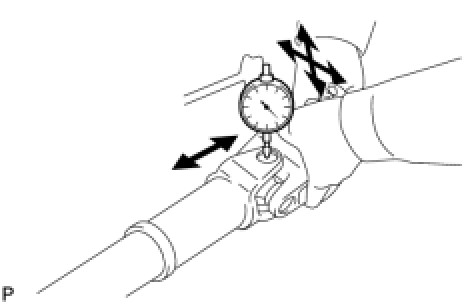

(b) Check the spider bearing axial play by turning the yoke while holding the shaft tightly.
Maximum bearing axial play:
0 mm (0 in.)
If the axial play is more than the maximum, replace the spider bearing.
