Removal

DRIVE SHAFT / PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY: REMOVAL

1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE NO. 2 ENGINE UNDER COVER Removal

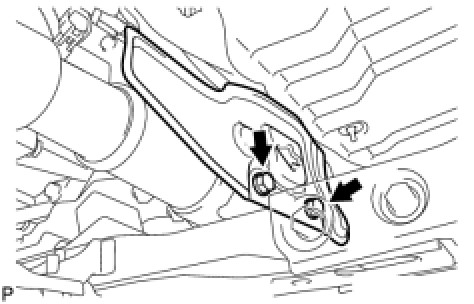

5. REMOVE PROPELLER SHAFT HEAT INSULATOR






(a) Remove the 2 bolts and insulator.
6. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

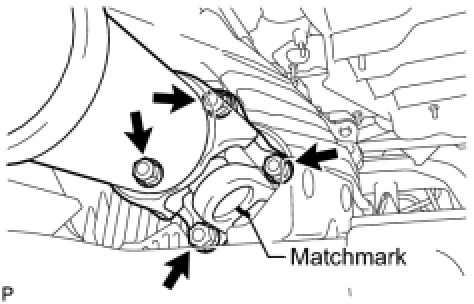

(a) for Transfer Side:
(1) Place matchmarks on the propeller shaft flange and transfer flange.
(2) Remove the 4 nuts and 4 washers.

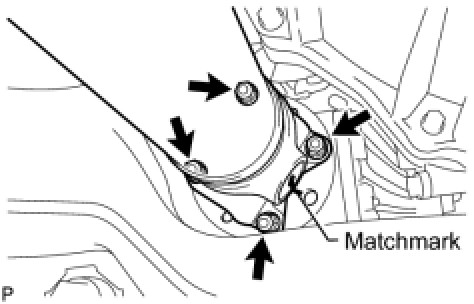

(b) for Differential Side:
(1) Place matchmarks on the propeller shaft flange and differential flange.
(2) Remove the 4 nuts and 4 washers.
(c) Remove the front propeller shaft.
