Replacement

AXLE AND DIFFERENTIAL: FRONT DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL: REPLACEMENT

HINT:
The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. DRAIN DIFFERENTIAL OIL Service and Repair

2. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
(a) Remove the front drive shaft Removal.
3. REMOVE DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

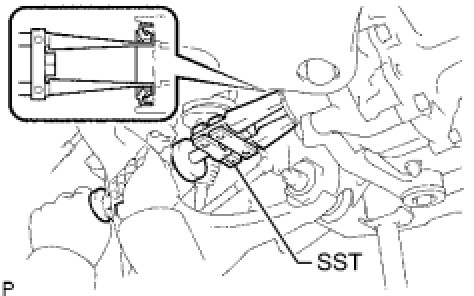

(a) Using SST, tap out the 2 oil seals.
SST: 09308-10010
4. INSTALL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL






(a) Apply MP grease to 2 new oil seals.

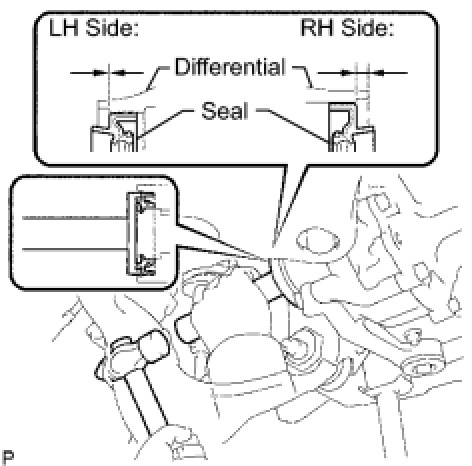

(b) Using SST and a hammer, tap in the 2 oil seals.
SST: 09550-00032
SST: 09950-70010
09951-07100
NOTICE:
Make sure the LH and RH oil seals are installed in the proper locations.

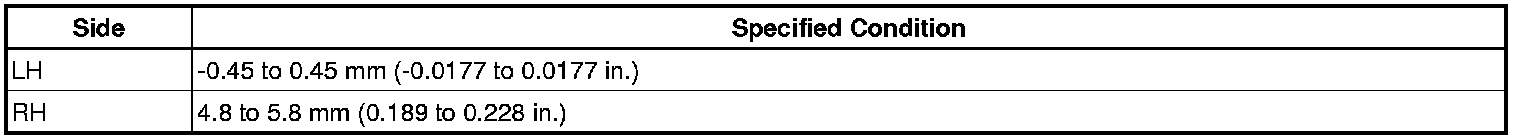

Standard Oil Seal Depth:






5. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
(a) Install the front drive shaft Installation.
6. ADD DIFFERENTIAL OIL Service and Repair
