Wiring Harness: Testing and Inspection

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION WIRE: INSPECTION

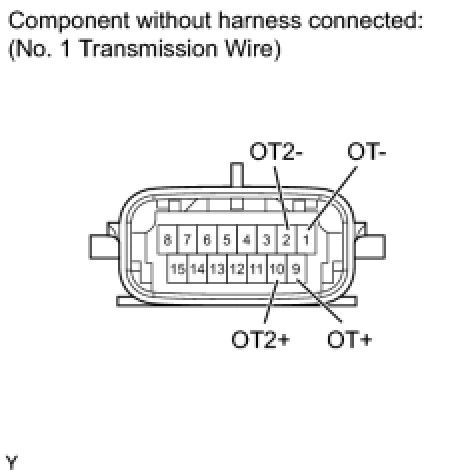

1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)

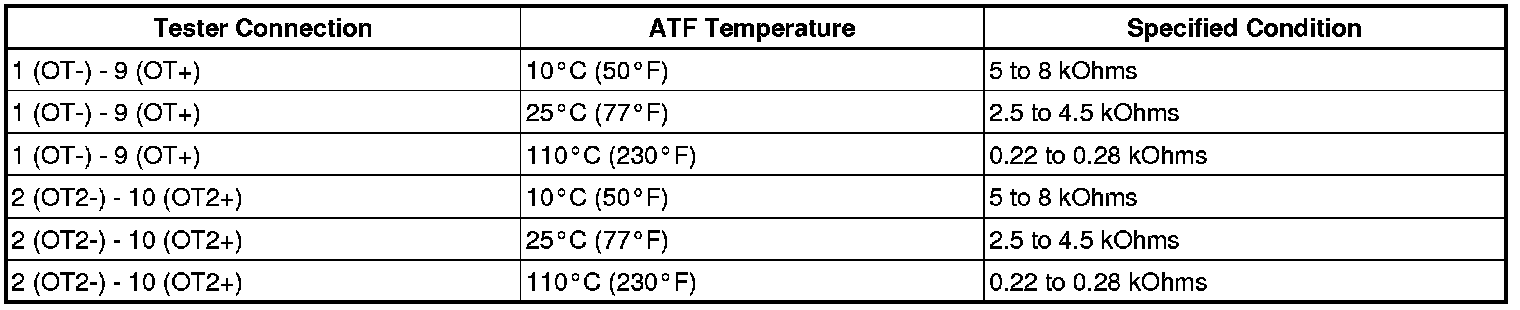

(a) Measure the resistance according to the value(s) in the table below.
HINT:
If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

Standard Resistance:





If the result is not as specified, replace the transmission wire.
