Installation

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

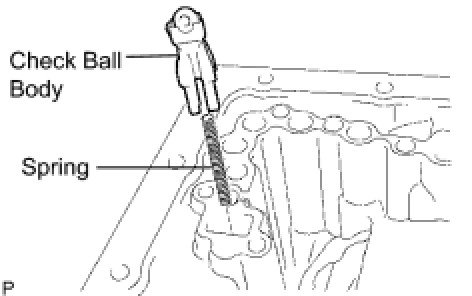

(a) Install the spring and check ball body.






(b) Insert the pin of the manual valve into the hole of the manual valve lever.






(c) Install the 19 bolts.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
HINT:
Each bolt length is indicated below.
HINT:
36 mm (1.42 in.) for bolt A
HINT:
25 mm (0.984 in.) for bolt B
HINT:
45 mm (1.77 in.) for bolt C
HINT:
50 mm (1.97 in.) for bolt D

(d) Install the detent spring and detent spring cover with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
2. CONNECT TRANSMISSION WIRE Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid Procedures.
7. INSTALL OIL PAN PROTECTOR ASSEMBLY Installation

8. INSTALL NO. 2 ENGINE UNDER COVER Installation
