Inspection

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSPECTION

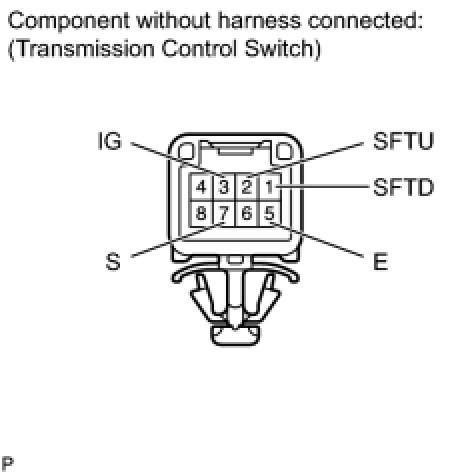

1. INSPECT TRANSMISSION CONTROL SWITCH

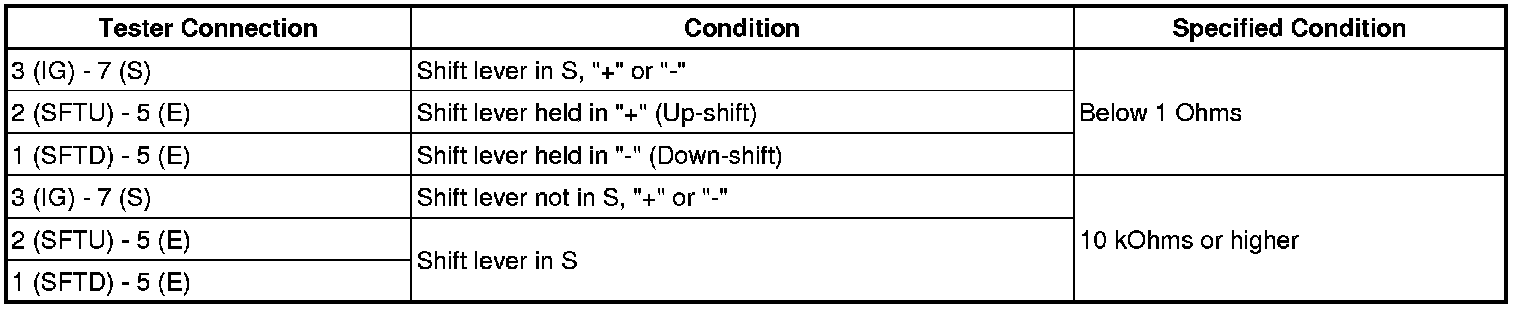

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the transmission floor shift assembly.
