Removal

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: REMOVAL

1. REMOVE COOLING BOX ASSEMBLY (w/ Cool Box)
(a) Remove the cooling box assembly Removal.
2. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)
(a) Remove the rear console box sub-assembly Installation.
3. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
(a) Move the shift lever to N.

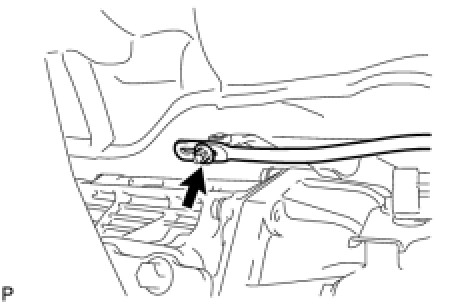

(b) Remove the nut and disconnect the shifting rod from the connecting rod swivel.

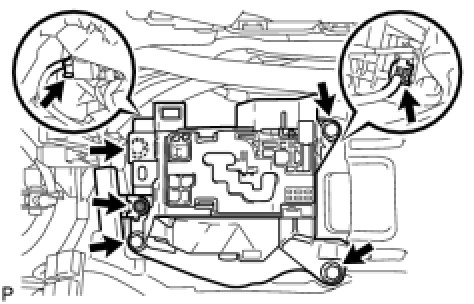

4. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
(a) Disconnect the 2 connectors.
(b) Remove the screw and disconnect the indoor electrical key oscillator.
(c) Remove the 4 bolts and floor shift.
