V. Work Procedure

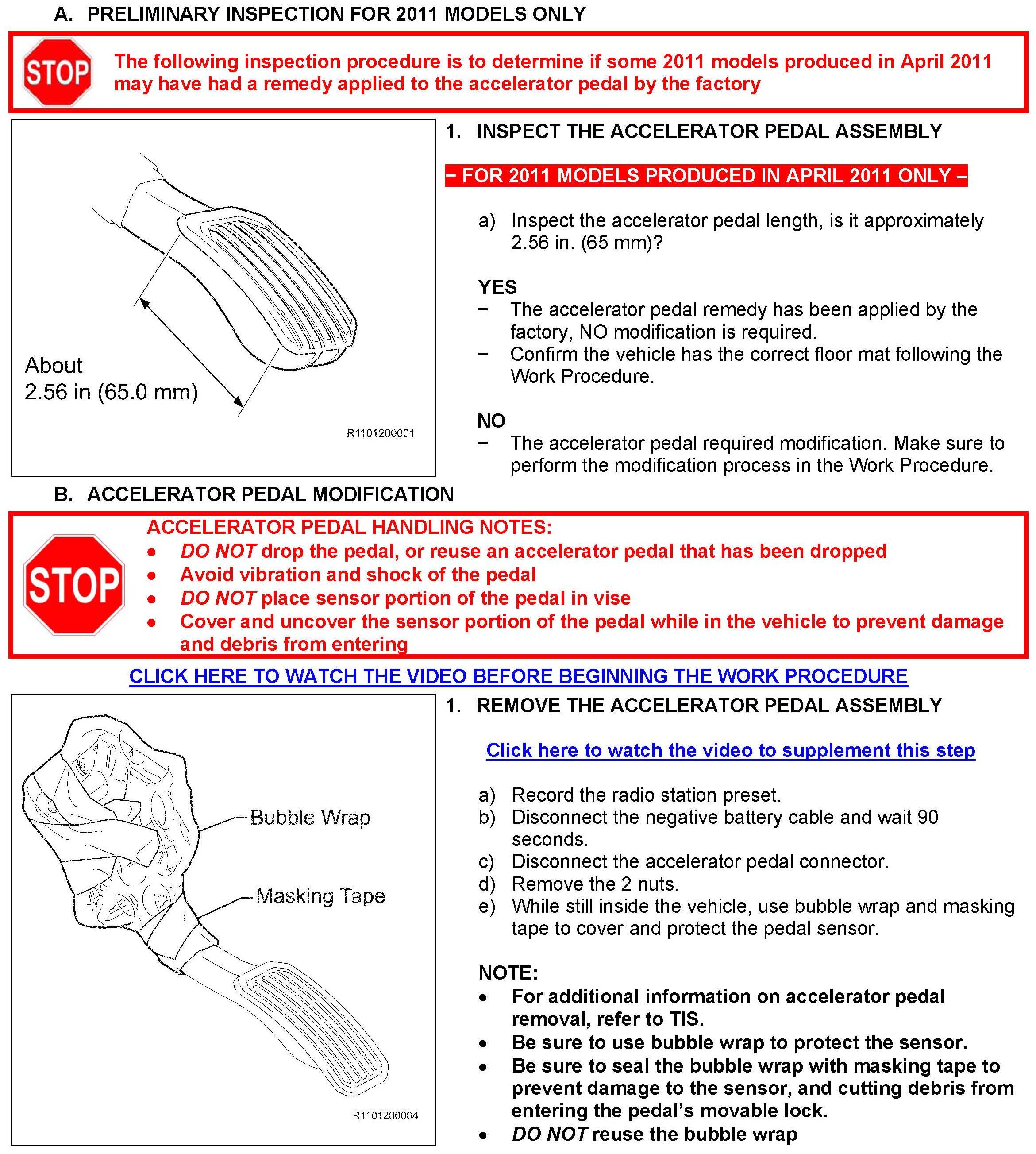

A. Preliminary Inspection For 2011 Models Only

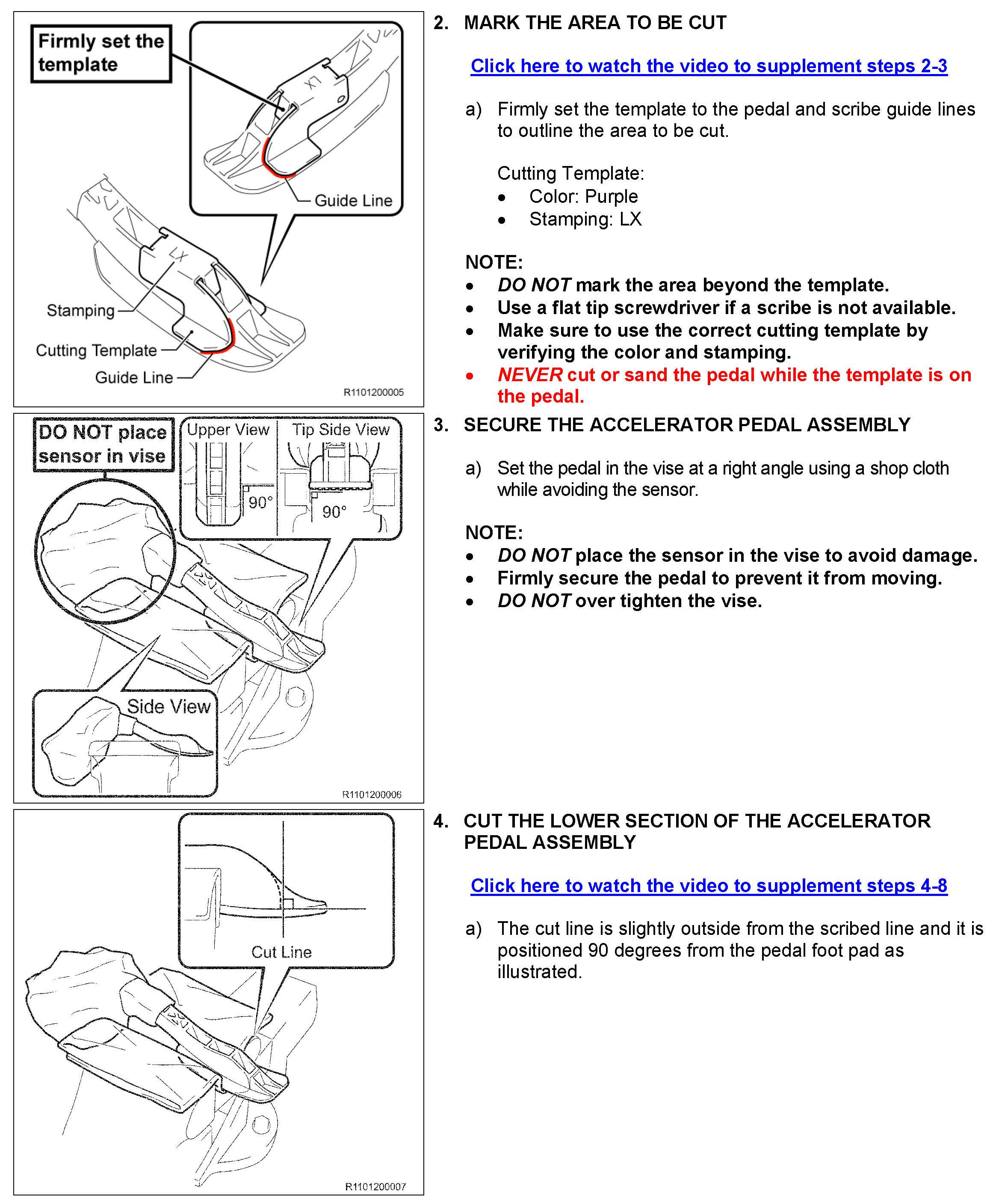

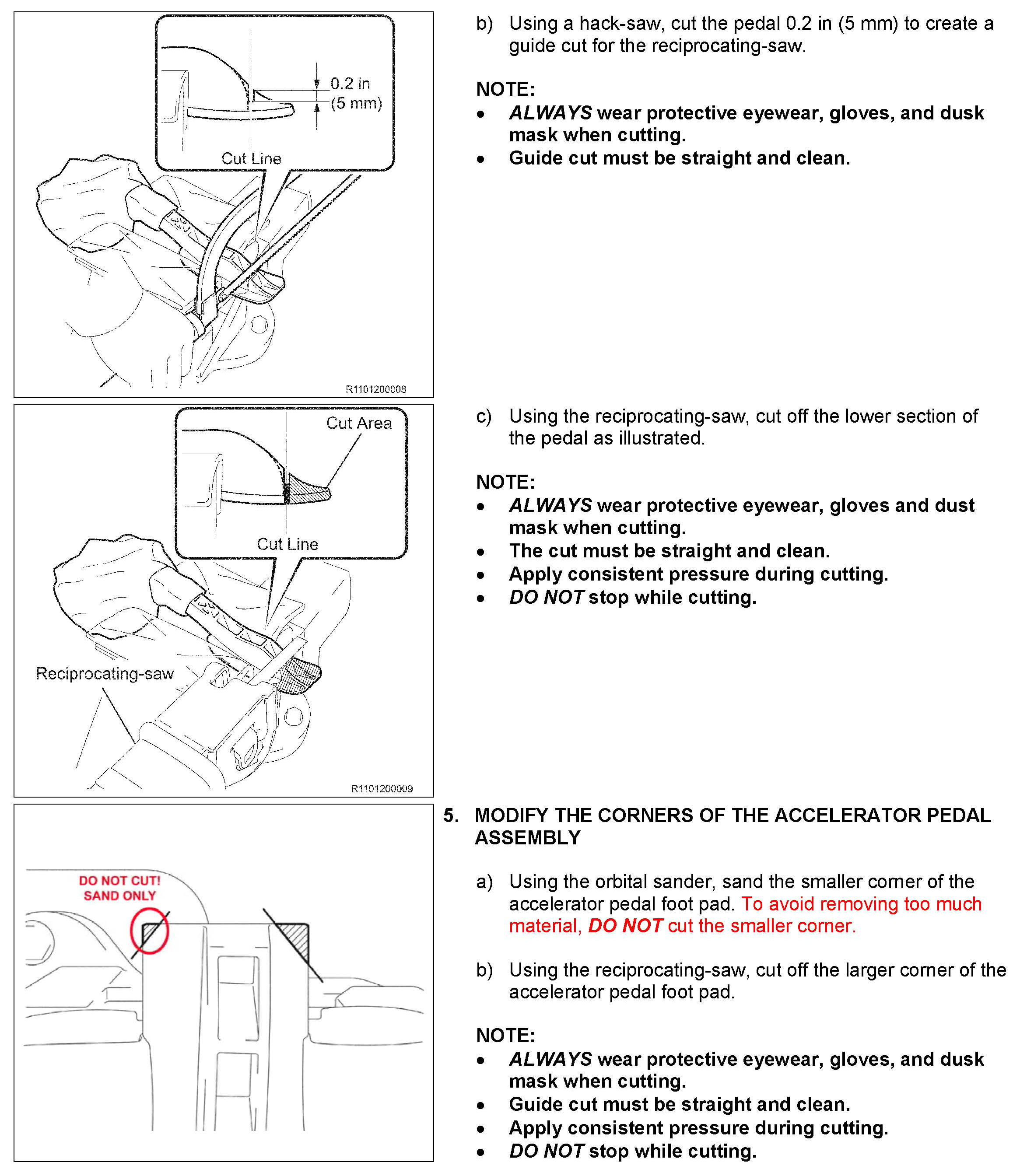

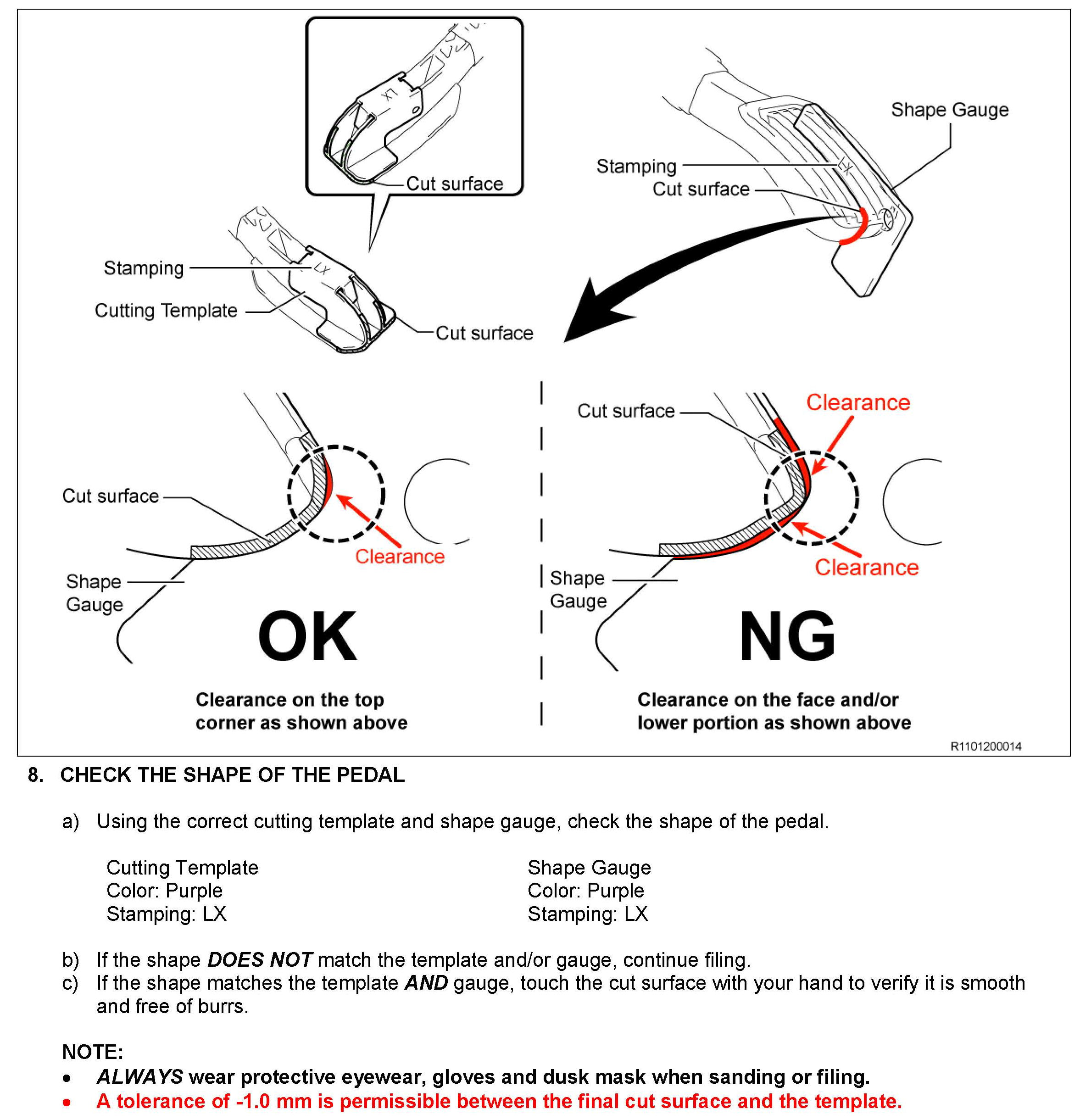

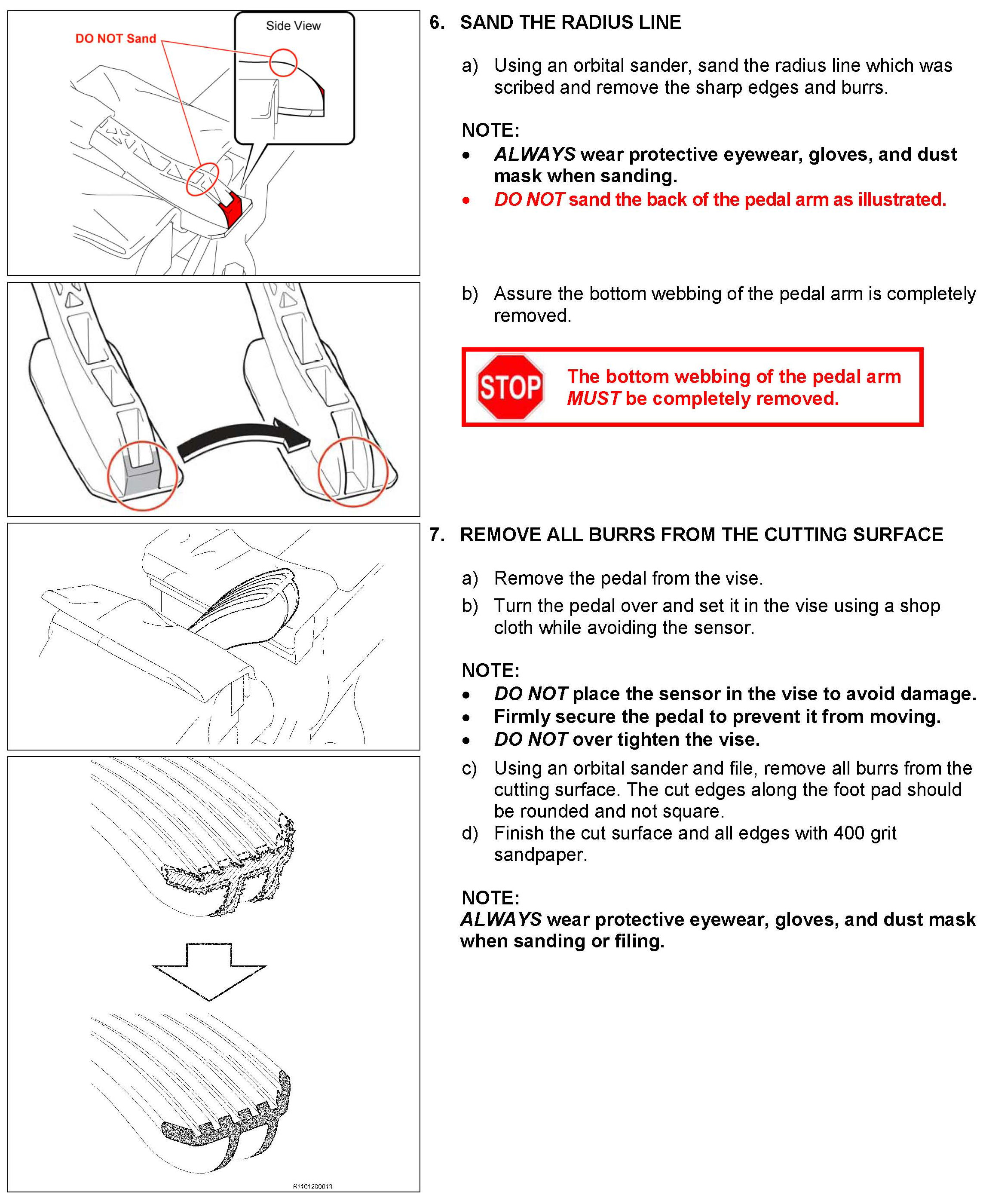

B. Accelerator Pedal Modification





























B. Accelerator Pedal Modification
