Canada - Body - Exterior Rear View Mirror Vibration
BulletinL-TCI-2969
Issue Date
September 7, 2011
Title:
EXTERIOR REAR VIEW MIRROR VIBRATION
Service Category
Vehicle Exterior
Section
Mirror (ext)
Market
Canada

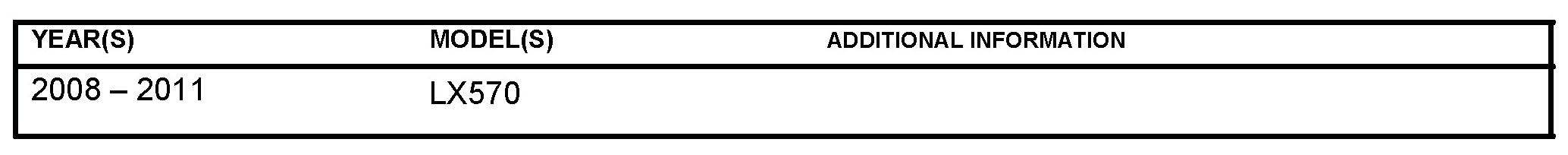

Applicability
Introduction
Some LX570 vehicles may exhibit a condition where the exterior rear view mirror vibrates while driving. A bolt set is now available to change this condition.

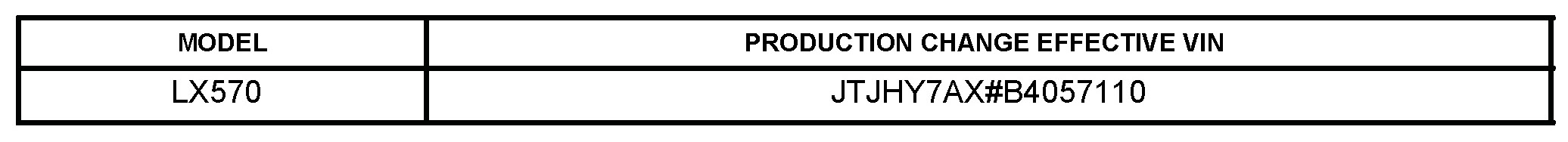

Production Change Information
This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

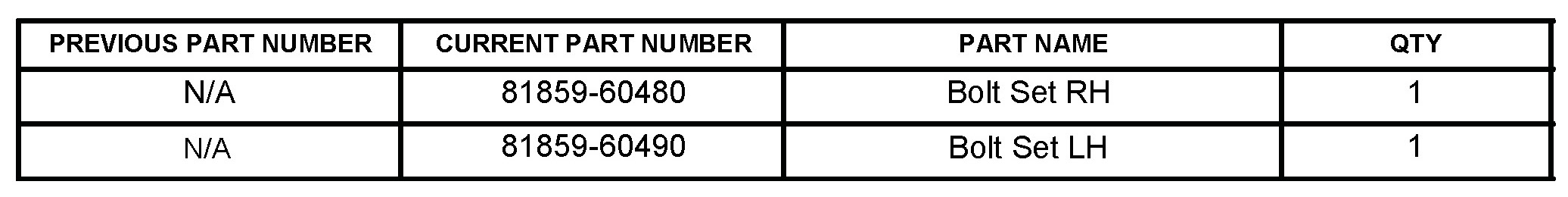

Parts Information

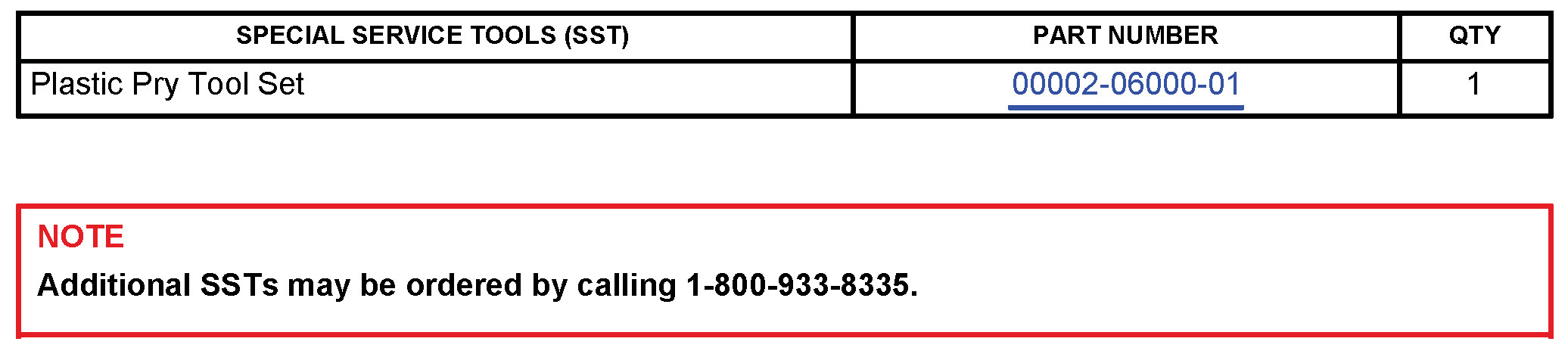

Required Tools & Equipment

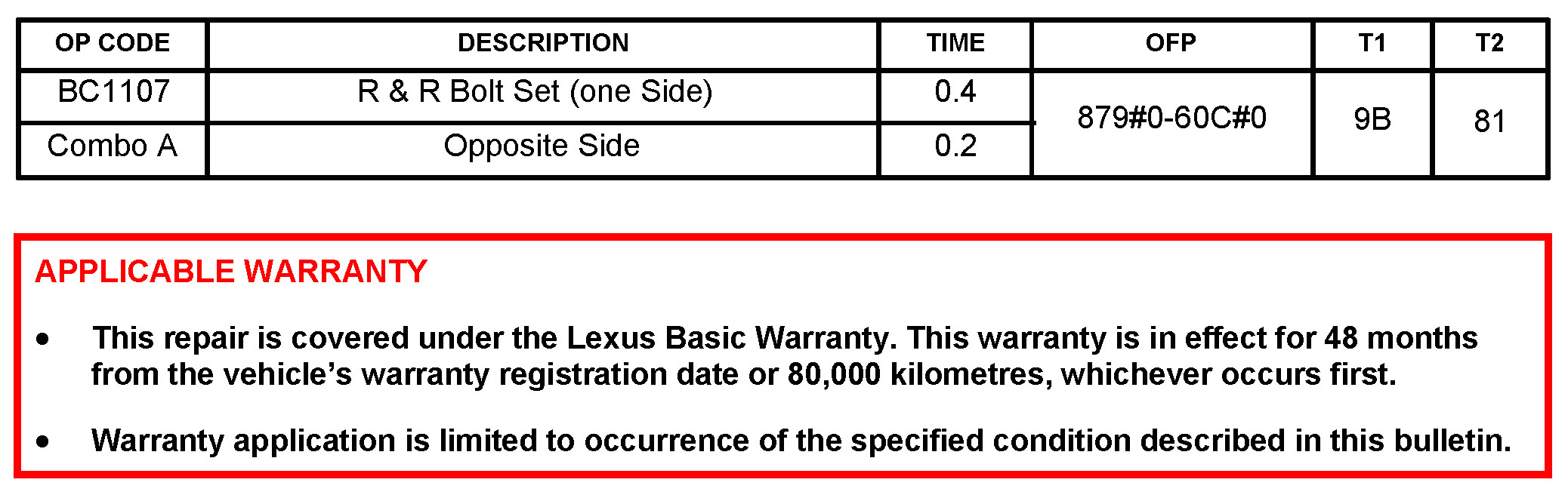

Warranty Information
Repair Procedure
HINT
Use same procedure for both sides.

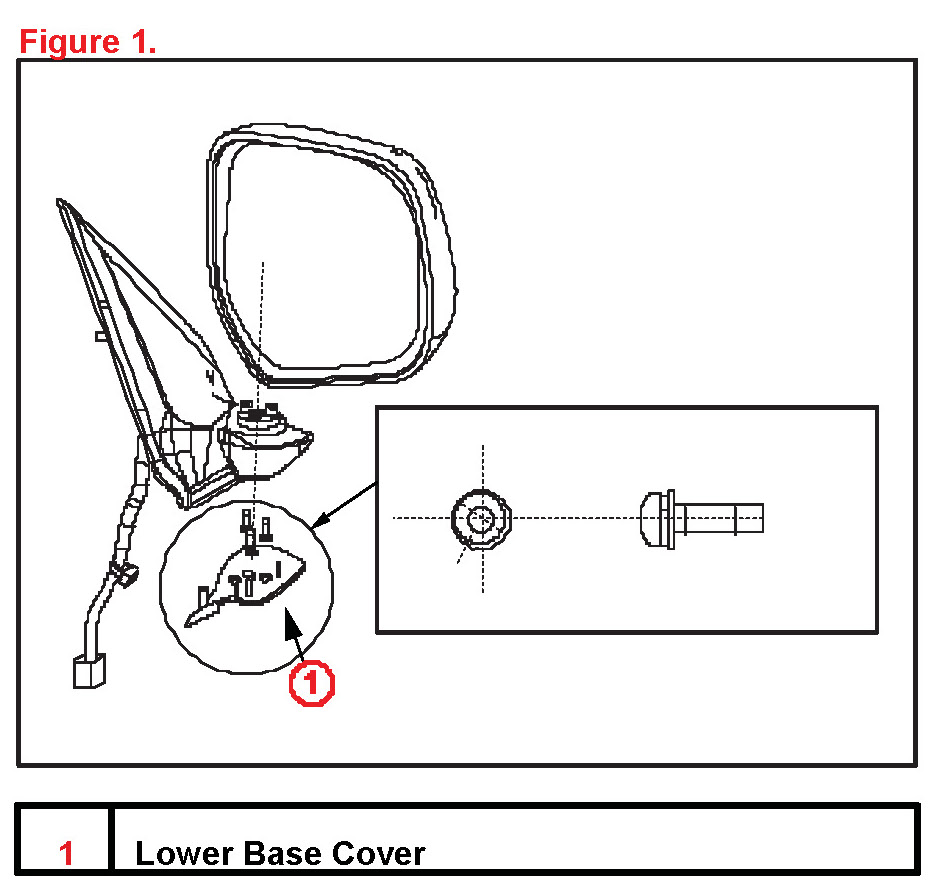

1. Using a plastic pry tool, remove the lower base cover from the mirror housing assembly.
2. Remove and replace the 3 torx bolts with the new bolt set.
Torque: 3.7 N-m (37.7 kgf-cm, 33 in-lbf)
3. Replace lower base cover with new one provided in bolt set.
4. Road test vehicle to confirm proper operation of mirror assembly.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available.
IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
