Replacement

AXLE AND DIFFERENTIAL: REAR AXLE HUB BOLT: REPLACEMENT

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL LH
2. DISCONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH Removal

3. REMOVE REAR DISC LH Removal

4. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING LH Disassembly

5. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY LH Disassembly

6. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY LH Disassembly

7. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH Disassembly

8. REMOVE REAR AXLE HUB BOLT LH

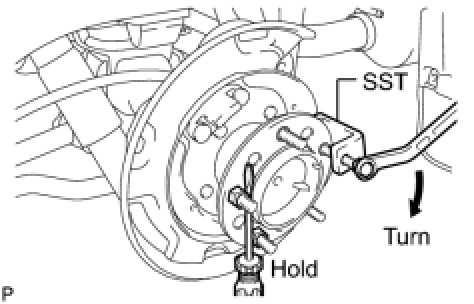

(a) Using SST and a screwdriver or equivalent to hold the axle hub, remove the hub bolt.
SST: 09650-17011
NOTICE:

- Do not deform the oil deflector.
- Make sure to align the notch of SST with the flange of the oil deflector.


9. INSTALL REAR AXLE HUB BOLT LH

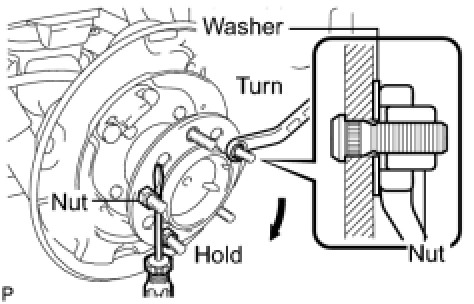

(a) Temporarily install a washer and hub nut to a new hub bolt as shown in the illustration.
NOTICE:
Install a hub nut to prevent damage to the hub bolt.

(b) Using a screwdriver or equivalent to hold the hub, turn the hub nut until the bottom surface of the hub bolt head touches the axle hub.
(c) Remove the washer and hub nut.
NOTICE:
Do not damage the threads of the hub bolt.

10. INSTALL PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH Reassembly

11. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH Reassembly

12. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH Reassembly

13. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING LH Reassembly

14. CHECK PARKING BRAKE INSTALLATION Reassembly

15. INSTALL REAR DISC LH Reassembly

16. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH Installation

17. CHECK PARKING BRAKE LEVER TRAVEL Adjustments

18. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments

19. INSTALL REAR WHEEL LH
Torque: 131 Nm (1336 kgf-cm, 97 ft-lbf)
