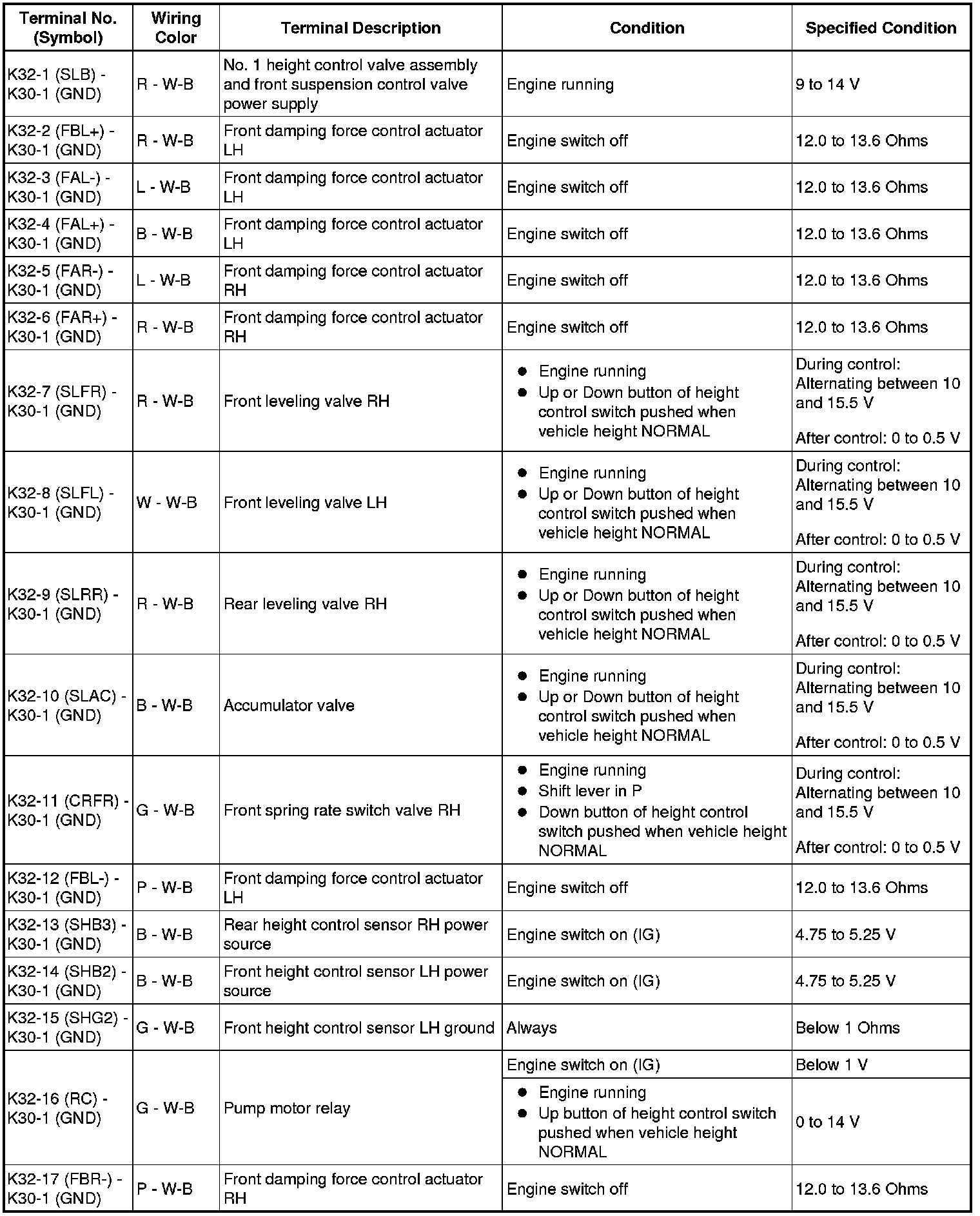

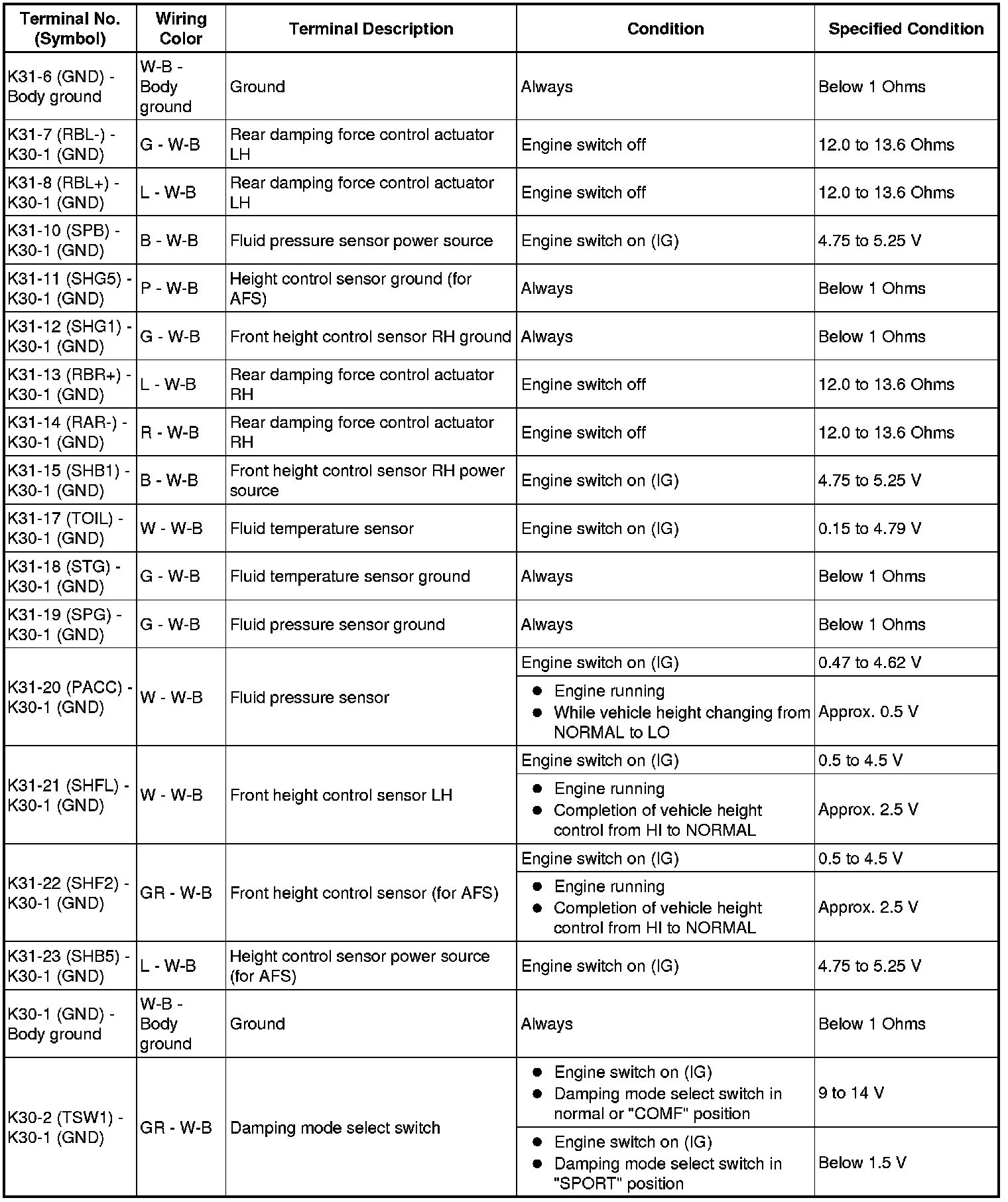

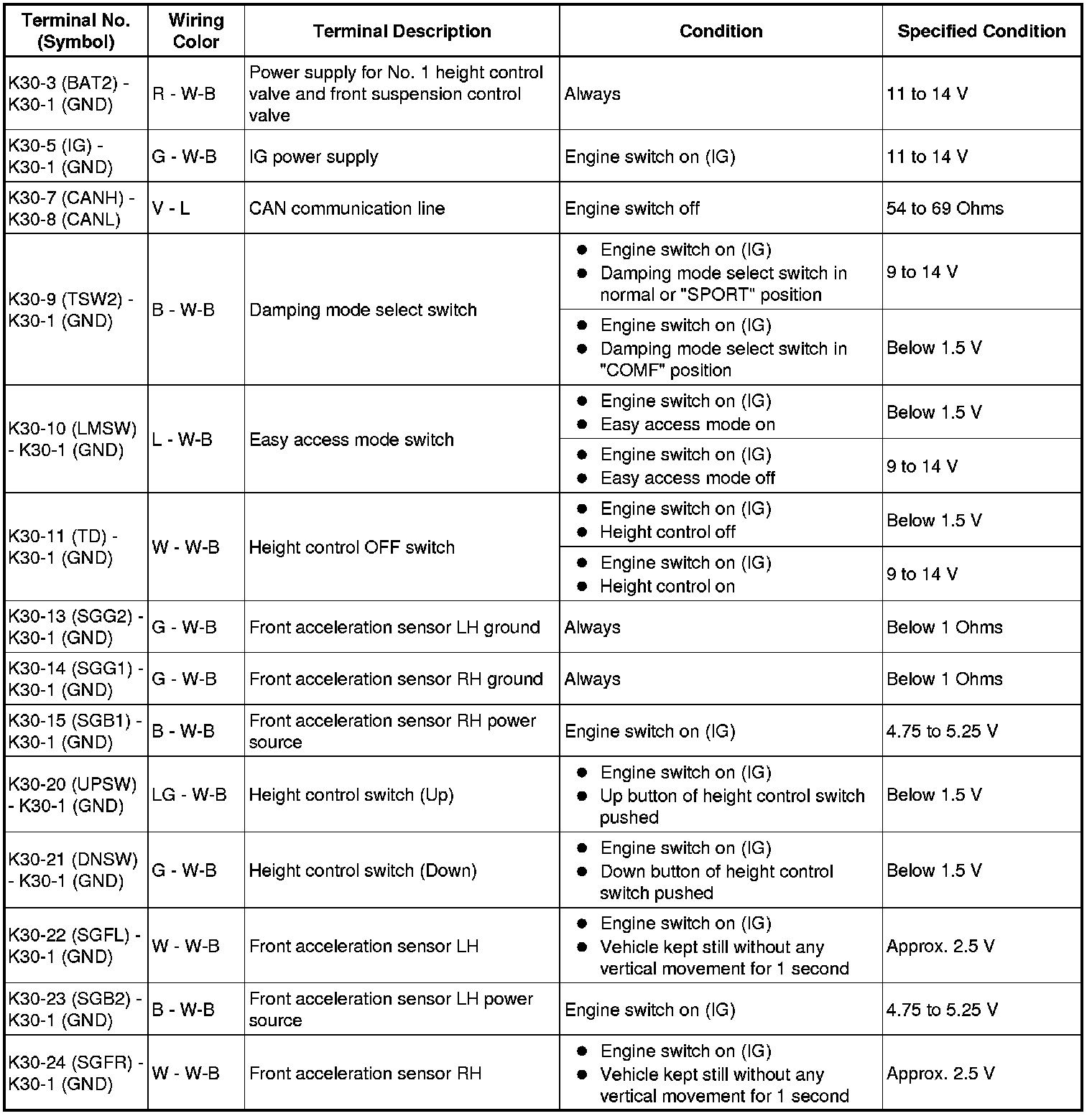

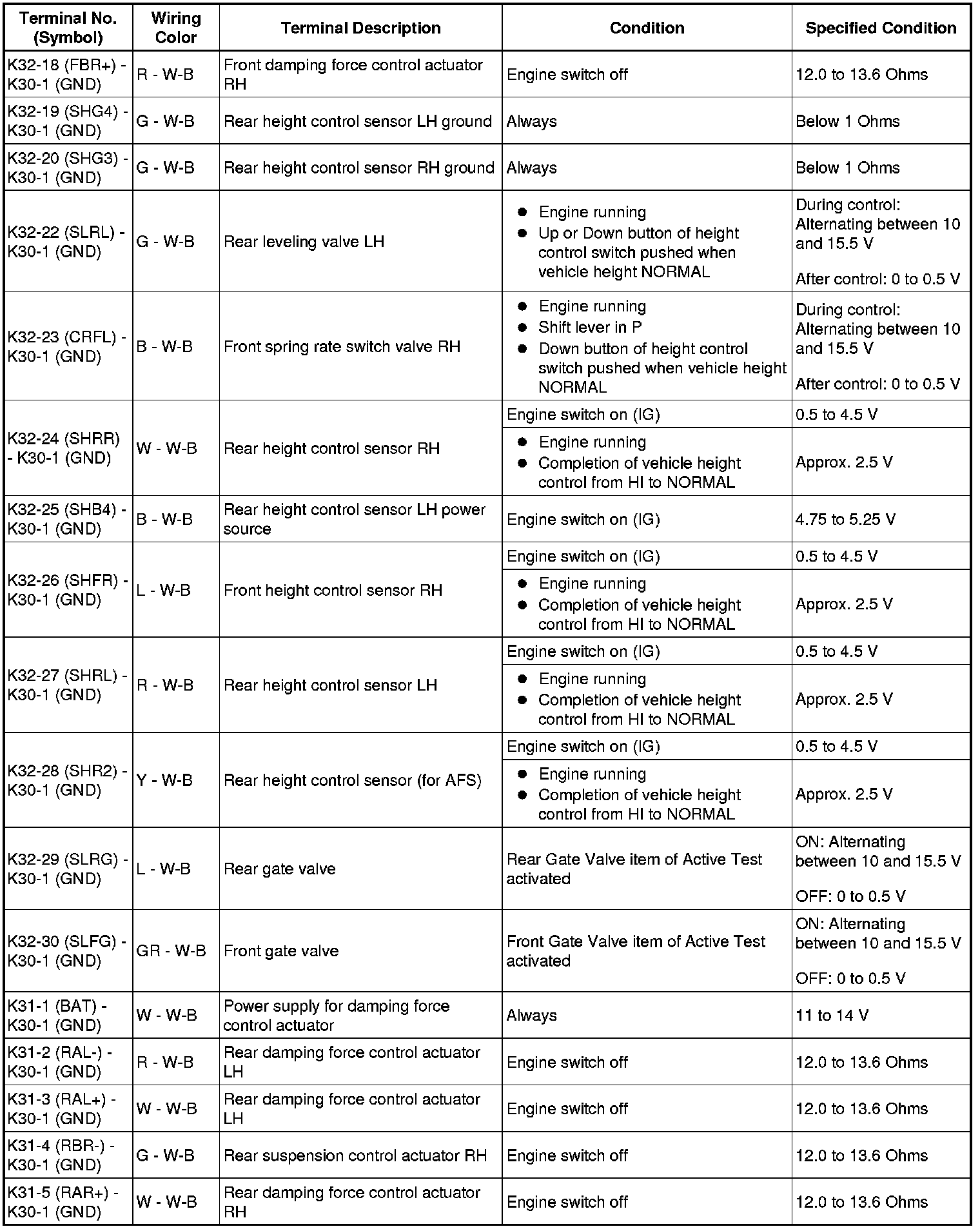

Pinout Values and Diagnostic Parameters

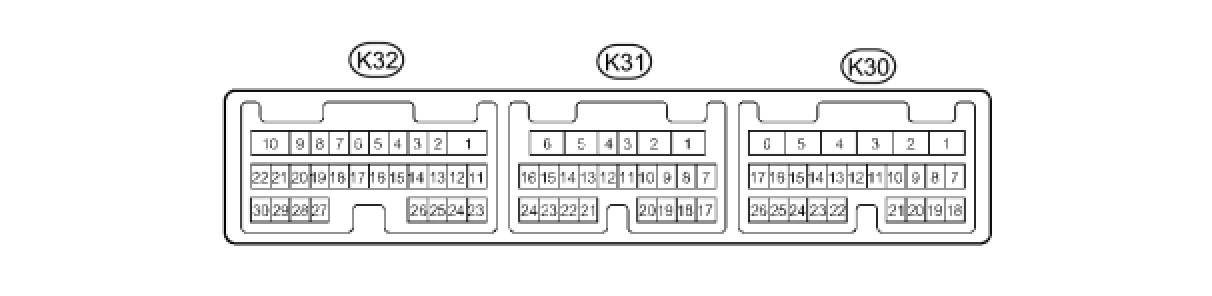

SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: TERMINALS OF ECU
1. CHECK SUSPENSION CONTROL ECU
HINT:
Inspect the connectors from the back side while the connectors are connected.
SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: TERMINALS OF ECU
1. CHECK SUSPENSION CONTROL ECU
HINT:
Inspect the connectors from the back side while the connectors are connected.
