Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Front Suspension System

Front Suspension System

FRONT SUSPENSION: FRONT SUSPENSION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:

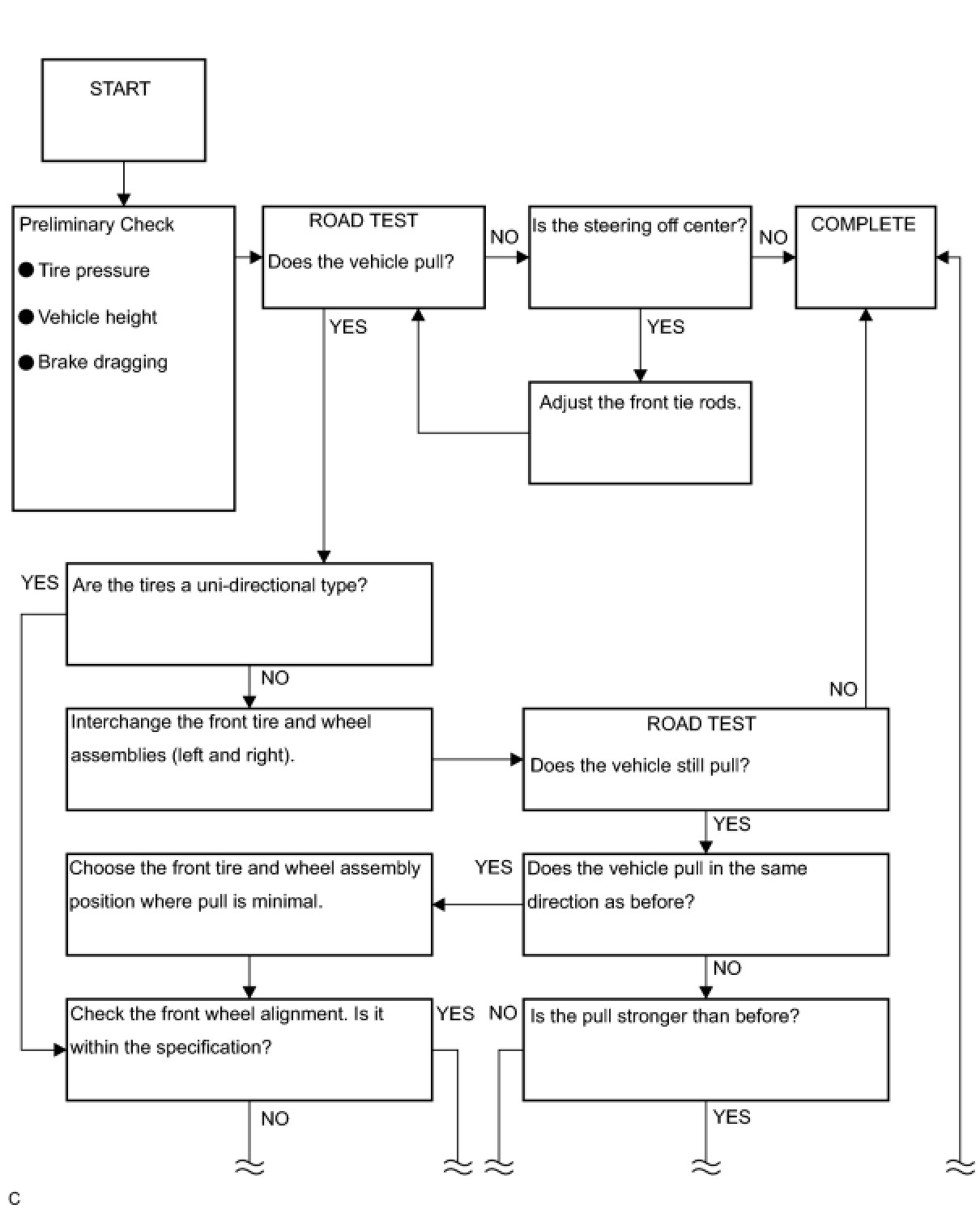

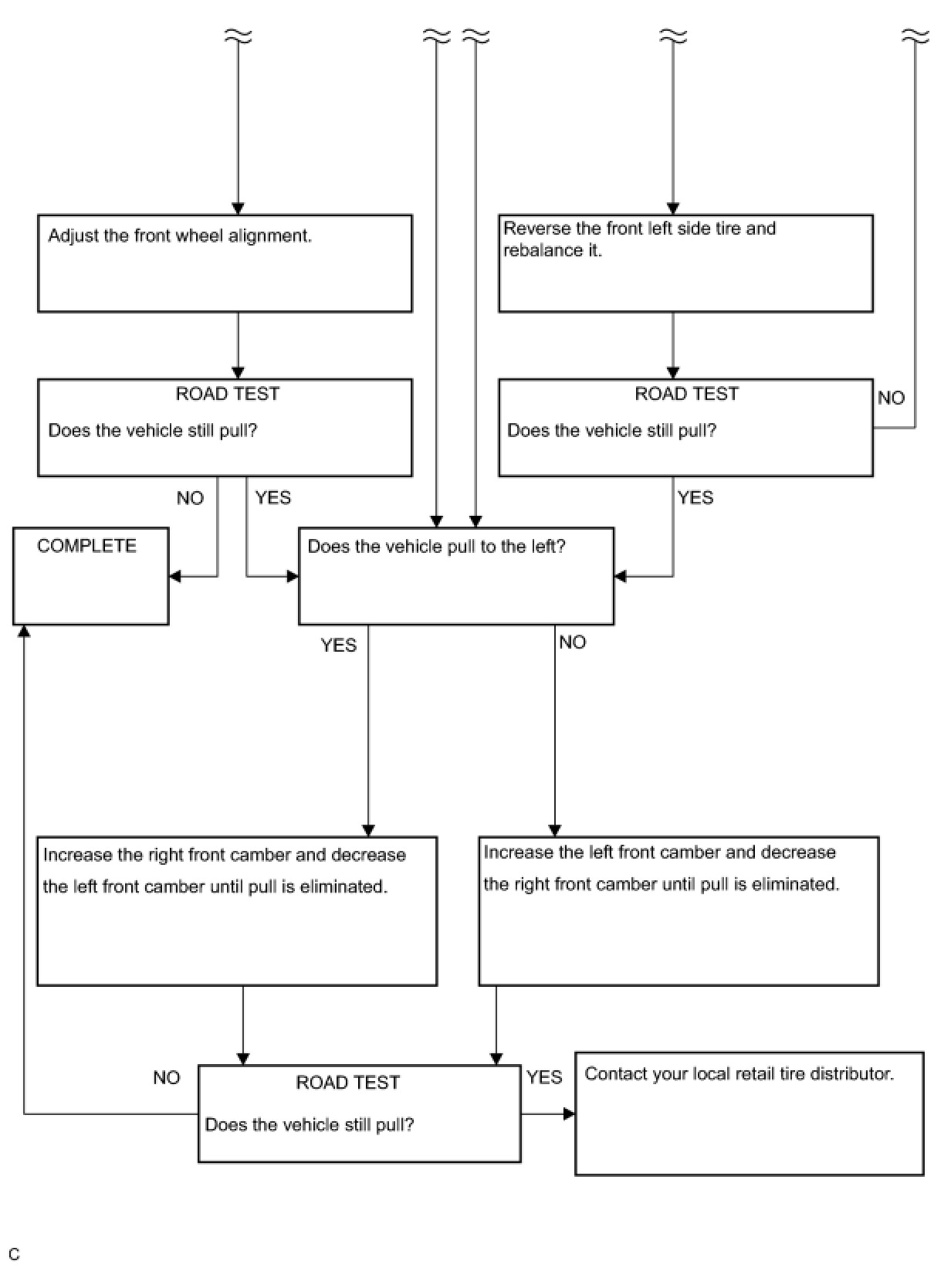

This is a flowchart for vehicle pull.
