Disassembly

REAR SUSPENSION: REAR SHOCK ABSORBER: DISASSEMBLY

1. REMOVE REAR SHOCK ABSORBER BUSH

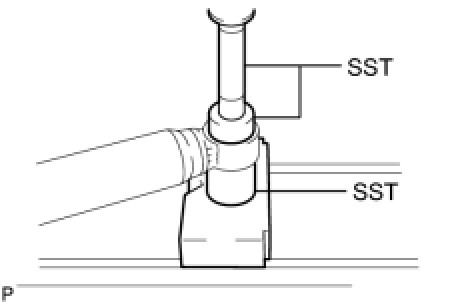

(a) Using SST and a press, press out the bush.
SST: 09710-14013
09710-00061
SST: 09710-28012
09710-07031
SST: 09950-70010
09951-07100
