Installation
REAR SUSPENSION: REAR COIL SPRING: INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.
1. INSTALL HOLLOW SPRING SUB-ASSEMBLY
(a) Install the hollow spring to the frame.
2. INSTALL REAR COIL SPRING LH

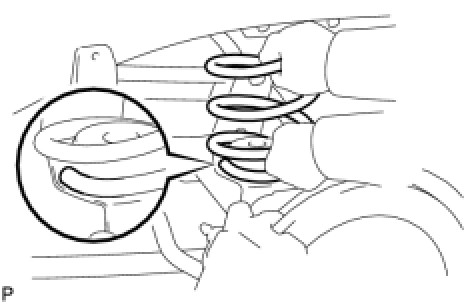

(a) Install the coil spring.
HINT:
Before installing the coil spring, check that the coil spring end is in the correct position. If not, reinstall it.
3. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY LH
(a) Temporarily install the lower side of the shock absorber with the bolt.
4. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY RH
(a) Temporarily install the lower side of the shock absorber with the bolt.
5. TEMPORARILY INSTALL REAR LATERAL CONTROL ROD ASSEMBLY Installation
6. CONNECT REAR FLEXIBLE HOSE Installation
7. STABILIZE SUSPENSION Installation
8. TIGHTEN REAR SHOCK ABSORBER ASSEMBLY LH
(a) Tighten the bolt.
Torque: 98 Nm (999 kgf-cm, 72 ft-lbf)
NOTICE:
Perform this procedure with all 4 wheels on the ground.
9. TIGHTEN REAR SHOCK ABSORBER ASSEMBLY RH
(a) Tighten the bolt.
Torque: 98 Nm (999 kgf-cm, 72 ft-lbf)
NOTICE:
Perform this procedure with all 4 wheels on the ground.
10. TIGHTEN REAR LATERAL CONTROL ROD ASSEMBLY Installation
11. INSTALL REAR STABILIZER END BRACKET LH
(a) Connect the stabilizer end bracket with the 2 bolts.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
12. INSTALL REAR STABILIZER END BRACKET RH
(a) Connect the stabilizer end bracket with the 2 bolts.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
13. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY Installation
14. CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY Installation
15. CONNECT REAR AXLE BREATHER HOSE SUB-ASSEMBLY Installation
16. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
17. BLEED BRAKE LINE Service and Repair
18. CHECK BRAKE FLUID LEVEL IN RESERVOIR Testing and Inspection
19. INSPECT FOR BRAKE FLUID LEAK
