Suspension Mode Switch: Testing and Inspection

SUSPENSION CONTROL: ACCESS MODE SWITCH: INSPECTION

1. INSPECT COMBINATION SWITCH ASSEMBLY (EASY ACCESS MODE SWITCH)

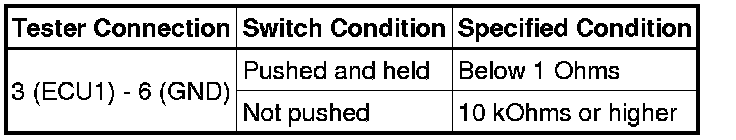

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the combination switch assembly.
