Suspension Control Pressure Sensor/Switch: Testing and Inspection

SUSPENSION CONTROL: ABSORBER CONTROL SWITCH: INSPECTION

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY

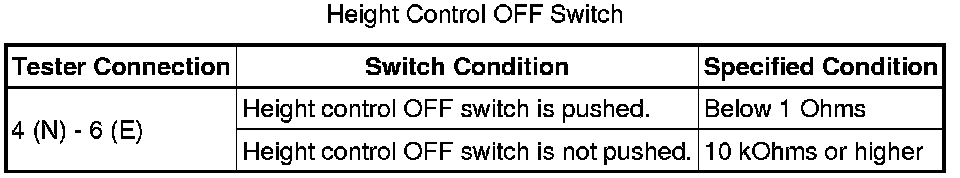

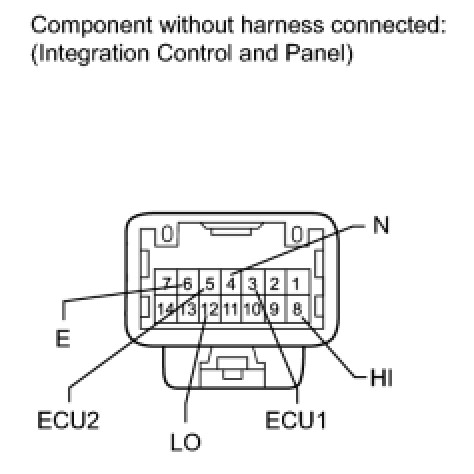

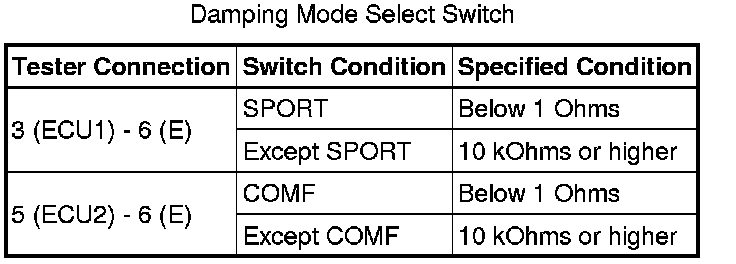

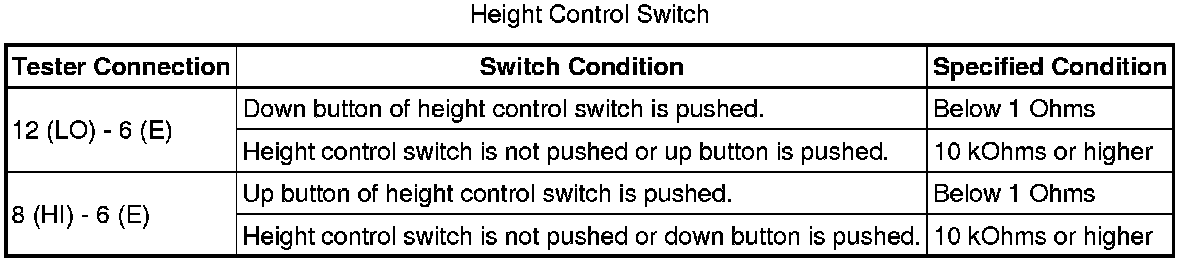

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:














If the result is not as specified, replace the integration control and panel assembly.
