Removal

SUSPENSION CONTROL: HEIGHT CONTROL SENSOR (for Rear Side): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR WHEEL
3. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

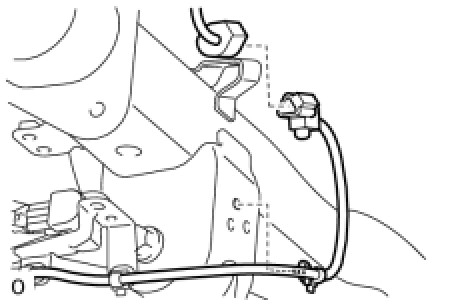

(a) Disconnect the connector and 2 clamps.

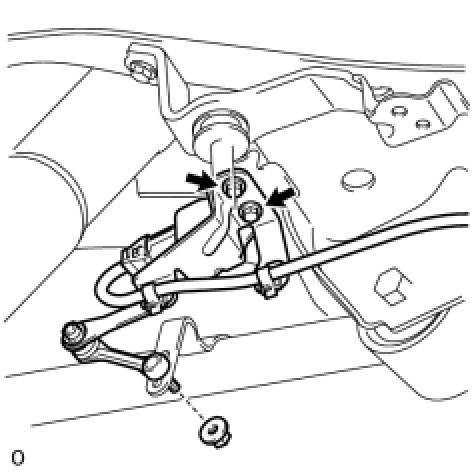

(b) Remove the 2 bolts, nut and sensor.
4. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

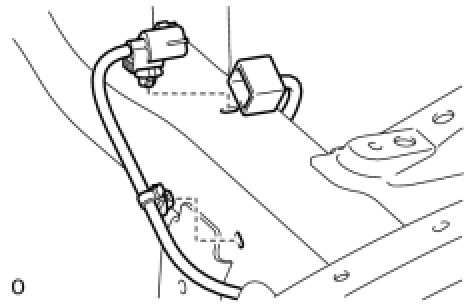

(a) Disconnect the connector and 2 clamps.

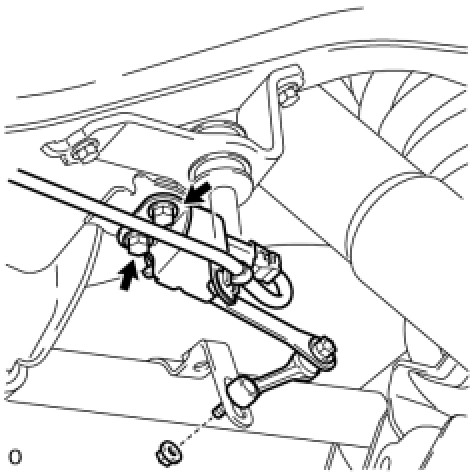

(b) Remove the 2 bolts, nut and sensor.
