Removal

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY: REMOVAL

1. REMOVE TAILPIPE ASSEMBLY Removal

2. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal

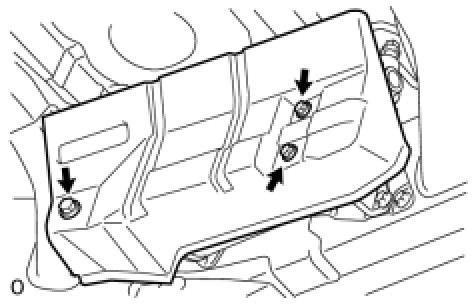

3. REMOVE HEIGHT CONTROL UNIT INSULATOR
(a) Remove the 3 bolts and insulator from the control unit.
4. REMOVE CLAMP
(a) Remove the clamp from the 3 height control tubes.
5. DISCHARGE SUSPENSION FLUID PRESSURE Removal

6. REMOVE NO. 7 HEIGHT CONTROL TUBE Removal

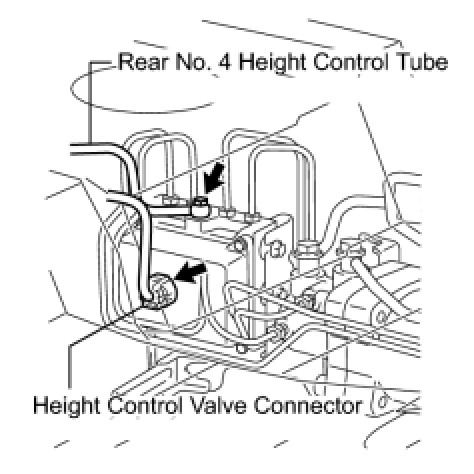

7. DISCONNECT REAR NO. 4 HEIGHT CONTROL TUBE






(a) Disconnect the connector.
(b) Remove the union bolt and gasket, then disconnect the rear No. 4 height control tube from the control valve.

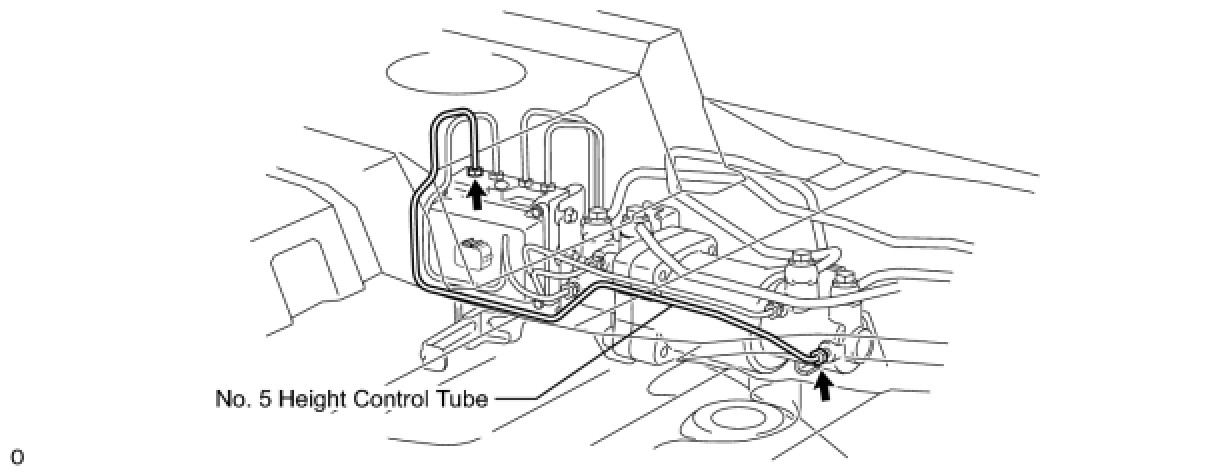

8. REMOVE NO. 5 HEIGHT CONTROL TUBE
(a) Using a union nut wrench, remove the No. 5 height control tube from the control valve and center cylinder.

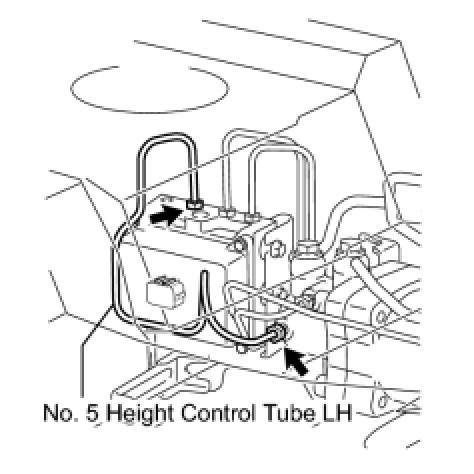

9. REMOVE NO. 5 HEIGHT CONTROL TUBE LH
(a) Using a union nut wrench, remove the No. 5 height control tube LH from the control valve and center cylinder.

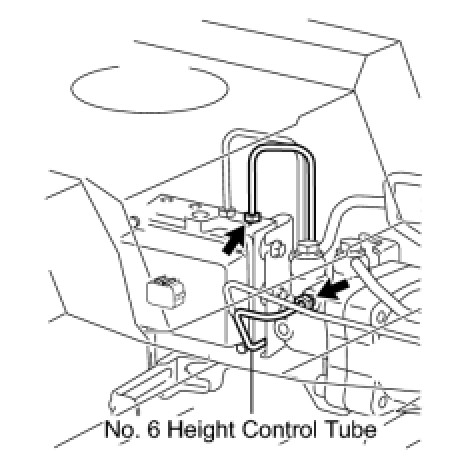

10. REMOVE NO. 6 HEIGHT CONTROL TUBE
(a) Using a union nut wrench, remove the No. 6 height control tube from the control valve and center cylinder.

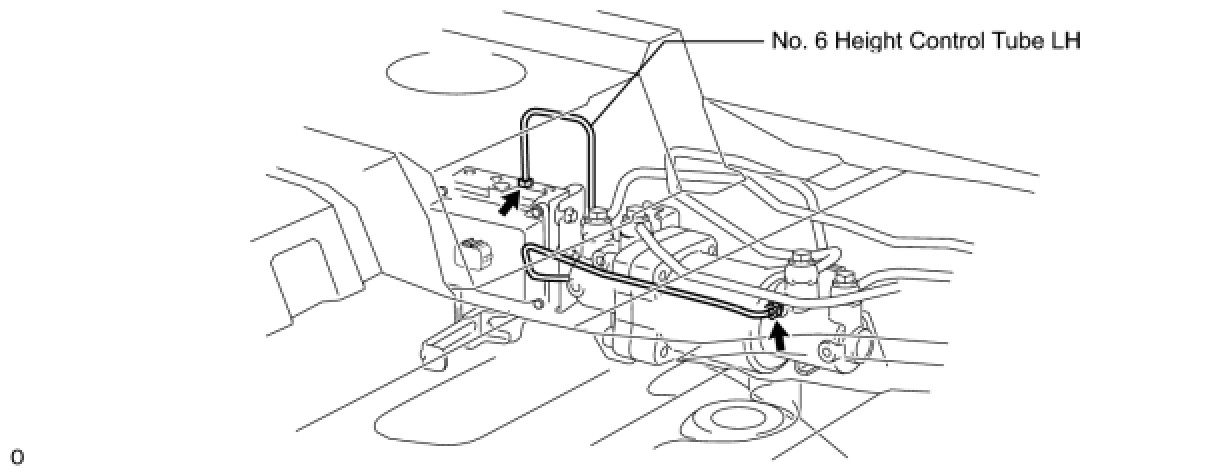

11. REMOVE NO. 6 HEIGHT CONTROL TUBE LH
(a) Using a union nut wrench, remove the No. 6 height control tube LH from the control valve and center cylinder.

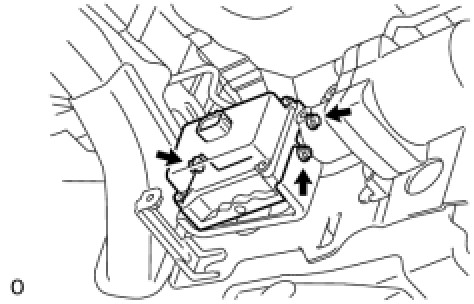

12. REMOVE NO. 1 HEIGHT CONTROL VALVE ASSEMBLY
(a) Remove the 3 nuts and control valve.
(b) Remove the 3 bolt holders and 3 bolt cushions from the control valve.
