SUSPENSION CONTROL: SUSPENSION CONTROL CYLINDER: REMOVAL

1. REMOVE TAILPIPE ASSEMBLY Removal

2. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal

3. REMOVE HEIGHT CONTROL UNIT INSULATOR Removal

4. DISCHARGE SUSPENSION FLUID PRESSURE Removal

5. REMOVE NO. 7 HEIGHT CONTROL TUBE Removal

6. REMOVE SUSPENSION CONTROL PUMP ACCUMULATOR ASSEMBLY Removal

7. REMOVE CLAMP Removal

8. REMOVE NO. 6 HEIGHT CONTROL TUBE Removal

9. REMOVE NO. 6 HEIGHT CONTROL TUBE LH Removal

10. REMOVE NO. 5 HEIGHT CONTROL TUBE LH Removal

11. REMOVE NO. 5 HEIGHT CONTROL TUBE Removal

12. DISCONNECT REAR NO. 4 HEIGHT CONTROL TUBE Removal

13. REMOVE NO. 1 HEIGHT CONTROL VALVE ASSEMBLY Removal

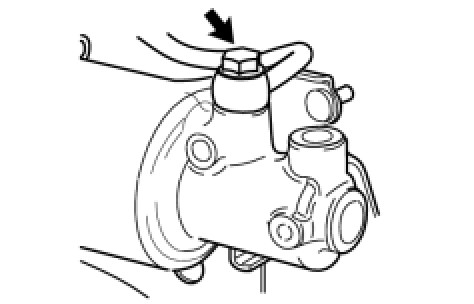

14. DISCONNECT NO. 3 HEIGHT CONTROL TUBE
(a) Remove the union bolt and gasket, then disconnect the No. 3 height control tube from the control cylinder.

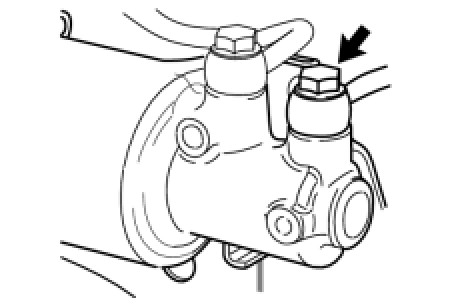

15. DISCONNECT NO. 4 HEIGHT CONTROL TUBE LH
(a) Remove the union bolt and gasket, then disconnect the No. 4 height control tube from the control cylinder.

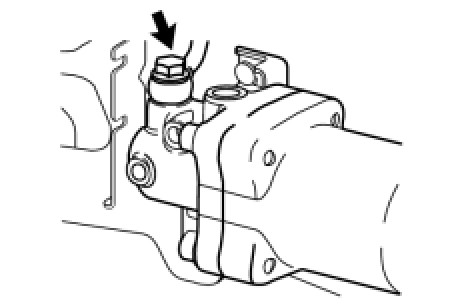

16. DISCONNECT NO. 4 HEIGHT CONTROL TUBE
(a) Remove the union bolt and gasket, then disconnect the No. 4 height control tube from the control cylinder.

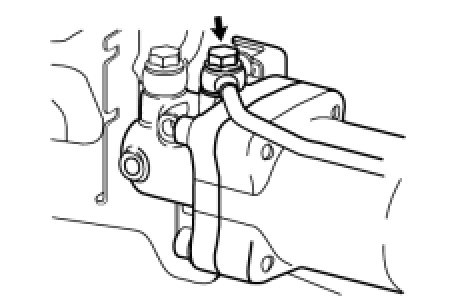

17. DISCONNECT NO. 3 HEIGHT CONTROL TUBE LH
(a) Remove the union bolt and gasket, then disconnect the No. 3 height control tube from the control cylinder.

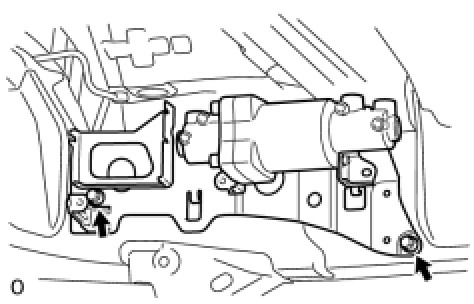

18. REMOVE HEIGHT CONTROL BRACKET WITH CYLINDER ASSEMBLY
(a) Remove the 2 bolts and bracket with cylinder.

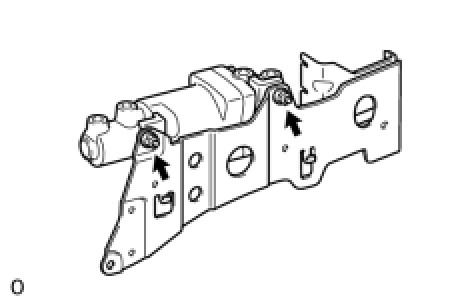

19. REMOVE CENTER SUSPENSION CONTROL CYLINDER SUB-ASSEMBLY
(a) Remove the 2 nuts and cylinder from the bracket.
