SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR: INSTALLATION

1. INSTALL HEIGHT CONTROL PUMP AND MOTOR ASSEMBLY

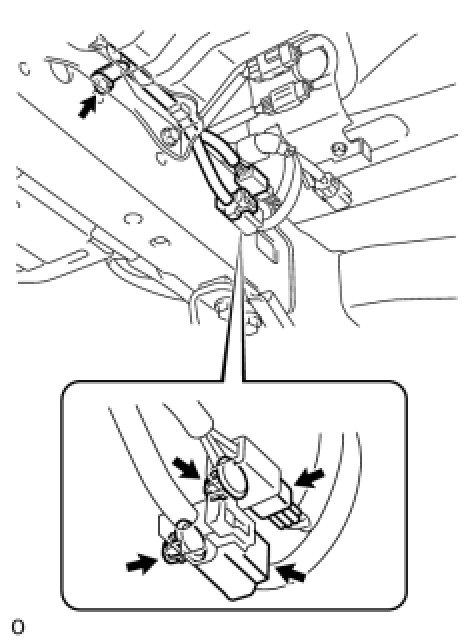

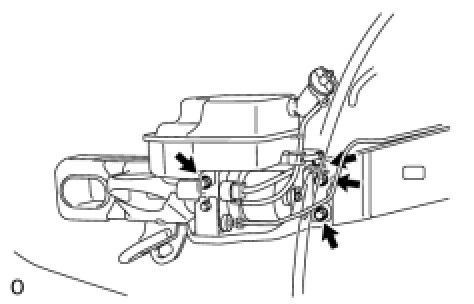

(a) Install the pump and motor with the 3 bolts.
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)






(b) Connect the 2 connectors and 3 clamps.

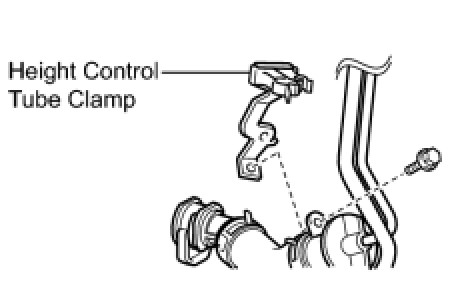

2. INSTALL HEIGHT CONTROL TUBE CLAMP






(a) Install the tube clamp with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the reservoir hose to the tube clamp.
3. CONNECT REAR NO. 6 HEIGHT CONTROL TUBE

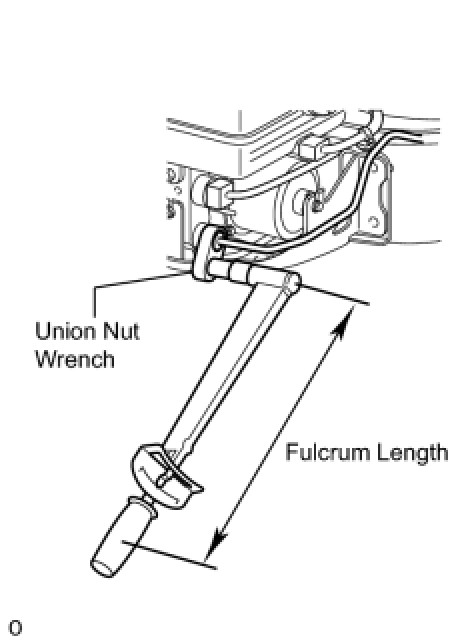

(a) Using a union nut wrench, connect the control tube to the pump and motor.
without union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with union nut wrench - Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
- The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.

4. BLEED AIR FROM SUSPENSION FLUID Service and Repair

5. CHECK FLUID LEVEL IN RESERVOIR Suspension Control System

6. INSPECT FOR SUSPENSION FLUID LEAK Suspension Control System

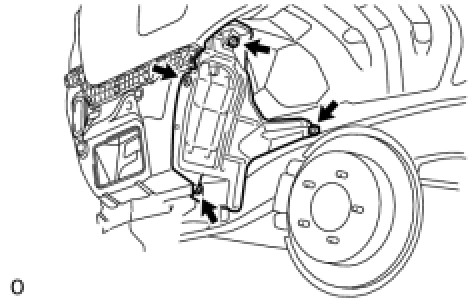

7. INSTALL FUEL TANK FILLER PIPE PROTECTOR






(a) Using a T30 "TORX" socket wrench, install the pipe protector with the 3 screws and 2 new grommets.
8. INSTALL LUGGAGE COMPARTMENT NO. 1 SIDE COVER PROTECTOR Installation

9. INSTALL REAR BUMPER COVER
(a) Install the bumper cover Installation.
10. INSTALL REAR QUARTER PANEL MUDGUARD RH Installation
