Disassembly

SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR: DISASSEMBLY

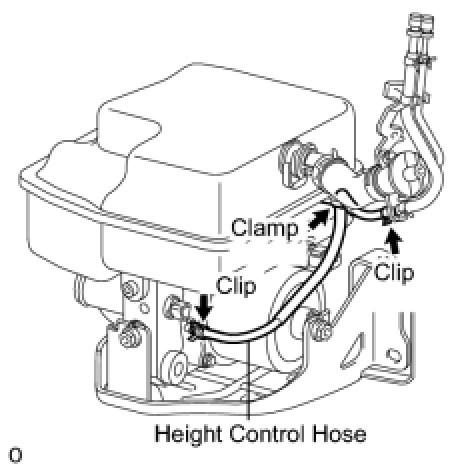

1. REMOVE HEIGHT CONTROL HOSE ASSEMBLY






(a) Disconnect the clamp from the reservoir, then remove the 2 clips and hose.

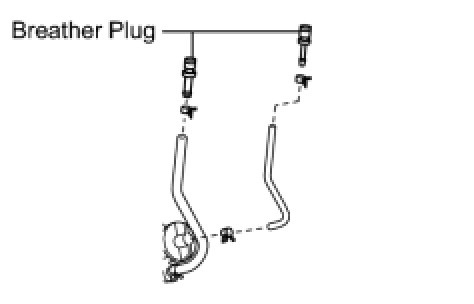

2. REMOVE HEIGHT CONTROL CAP TO RESERVOIR HOSE






(a) Remove the 3 clips, 2 breather plugs and hose from the reservoir hose.

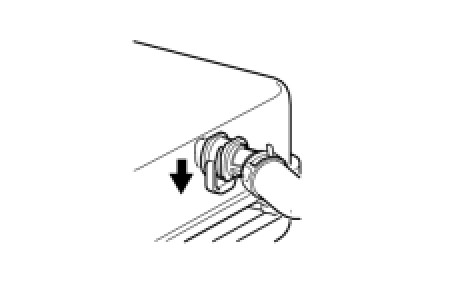

(b) Pull the connector down to detach it and remove the hose from the reservoir tank.

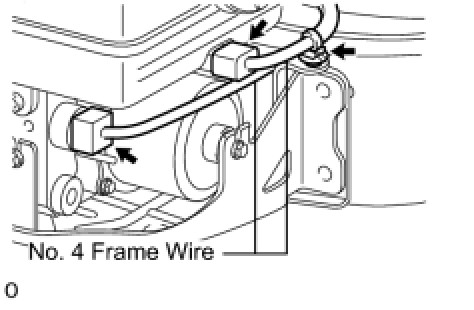

3. DISCONNECT NO. 4 FRAME WIRE






(a) Disconnect the 2 connectors, clamp and frame wire.

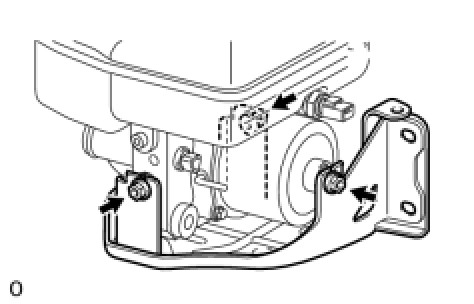

4. REMOVE HEIGHT CONTROL COMPRESSOR BRACKET ASSEMBLY






(a) Remove the 3 nuts and bracket from the pump and motor.

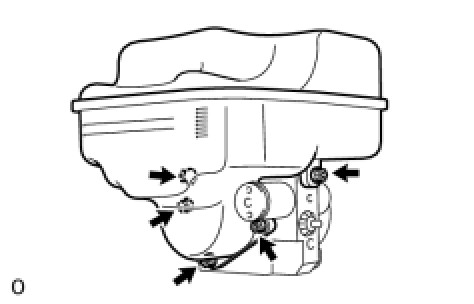

5. REMOVE HEIGHT CONTROL RESERVOIR ASSEMBLY






(a) Using a 5 mm hexagon wrench, remove the 5 bolts and reservoir from the pump and motor.
6. REMOVE NO. 1 HEIGHT CONTROL BOLT CUSHION
(a) Remove the 3 bolt holders and 3 bolt cushions from the pump and motor.
