Removal

SUSPENSION CONTROL: HEIGHT CONTROL ACCUMULATOR: REMOVAL

1. REMOVE TAILPIPE ASSEMBLY Removal

2. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal

3. REMOVE HEIGHT CONTROL UNIT INSULATOR Removal

4. DISCHARGE SUSPENSION FLUID PRESSURE Removal

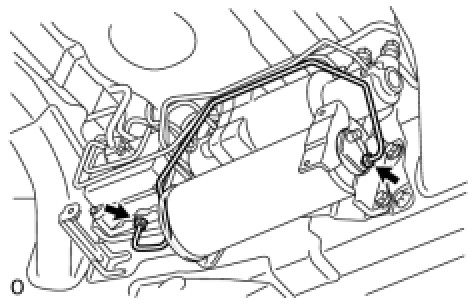

5. REMOVE NO. 7 HEIGHT CONTROL TUBE
(a) Using a union nut wrench, remove the control tube from the control valve and pump accumulator.

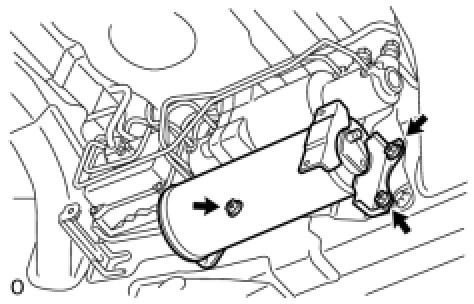

6. REMOVE SUSPENSION CONTROL PUMP ACCUMULATOR ASSEMBLY
(a) Remove the 3 nuts and pump accumulator.
