Acceleration Sensor: Testing and Inspection

SUSPENSION CONTROL: FRONT ACCELERATION SENSOR: INSPECTION

1. INSPECT ACCELERATION SENSOR





NOTICE:
Do not drop the acceleration sensor. If it is dropped, replace it with a new one.

(a) Connect 3 dry batteries of 1.5 V in series.

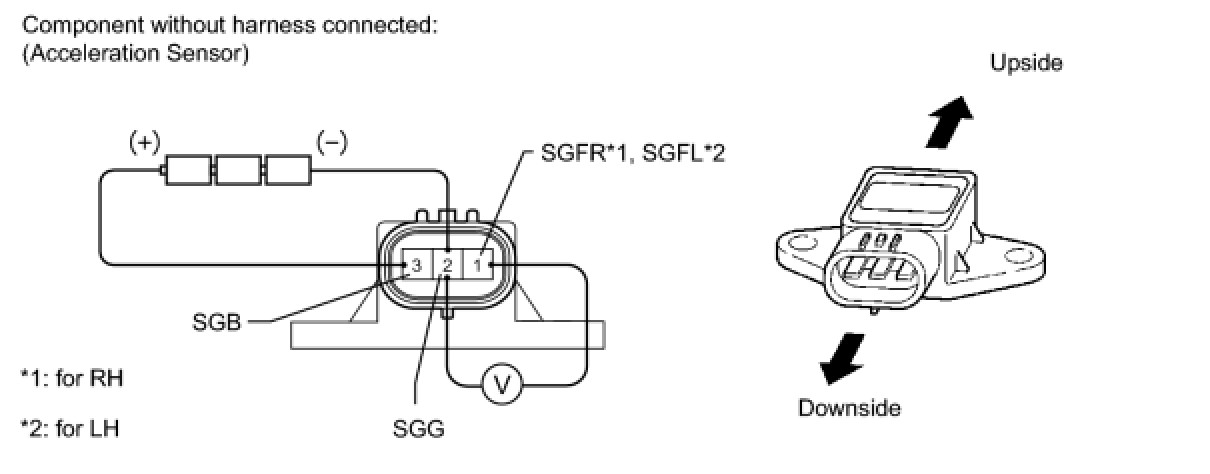

(b) Connect the positive (+) end of the batteries to terminal 3 (SGB) of the acceleration sensor and the negative (-) end of the batteries to terminal 2 (SGG). Then measure the voltage between terminal 1 (SGFR*1, SGFL*2) and terminal 2 (SGG).
(c) Measure the voltage according to the value(s) in the table below.

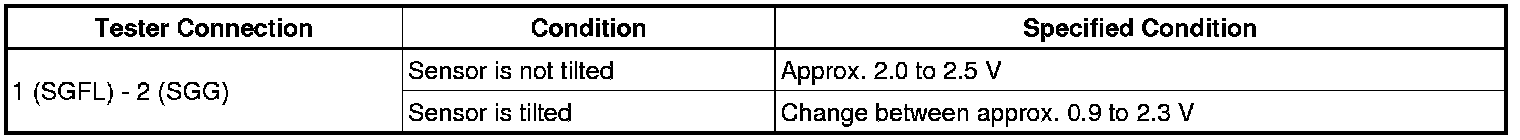

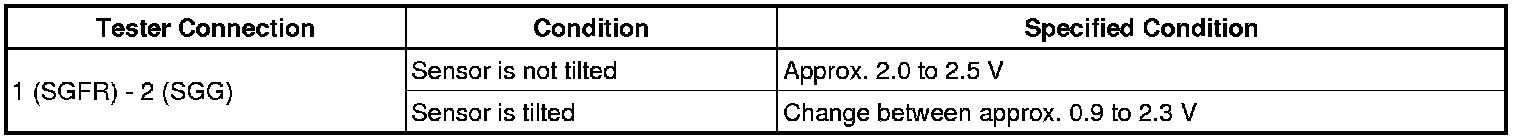

Standard Voltage:

for RH





for LH





NOTICE:
Do not apply a voltage of higher than 6 V.
HINT:
The voltage may differ according to the amount that the sensor is tilted.
- If the result is not as specified, replace the acceleration sensor.
