Removal
SUSPENSION CONTROL: FRONT ACCELERATION SENSOR: REMOVAL
1. TABLE OF BOLT, SCREW AND NUT Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
3. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal
4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Removal
5. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Removal
6. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH Removal
7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
8. REMOVE INSTRUMENT SIDE PANEL LH Removal
9. REMOVE NO. 1 SWITCH HOLE BASE Removal
10. REMOVE FRONT DOOR SCUFF PLATE LH Removal
11. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
12. REMOVE COWL SIDE TRIM BOARD LH Removal
13. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Removal
14. REMOVE INSTRUMENT PANEL BOX ASSEMBLY Removal
15. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal
16. REMOVE INSTRUMENT SIDE PANEL RH Removal
17. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
18. REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
19. REMOVE FRONT DOOR SCUFF PLATE RH Removal
20. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
21. REMOVE COWL SIDE TRIM BOARD RH Removal
22. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Removal
23. REMOVE INSTRUMENT PANEL BOX DOOR KNOB Removal
24. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Removal
25. REMOVE STEERING CONTROL ECU WITH JUNCTION BLOCK
(a) Rear Side:
(1) Disconnect the 7 connectors.
(2) Detach the 2 clamps.
(3) Remove the bolt and 2 nuts.
(b) Front side:
(1) Disconnect the 5 connectors.
(c) Remove the steering control ECU with junction block from the vehicle.

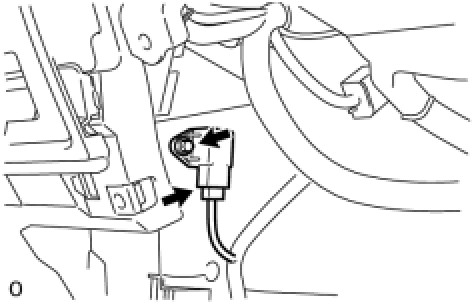

26. REMOVE ACCELERATION SENSOR (for Driver Side)
(a) Disconnect the connector.
(b) Remove the bolt and sensor.

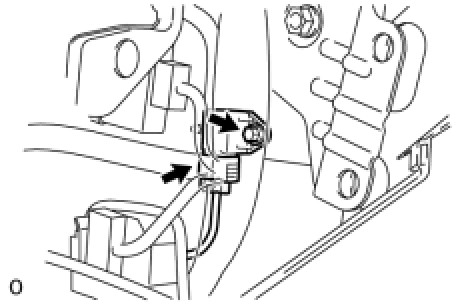

27. REMOVE ACCELERATION SENSOR (for Front Passenger Side)
(a) Disconnect the connector.
(b) Remove the bolt and sensor.
