Removal

REAR SUSPENSION: REAR STABILIZER BAR: REMOVAL

1. REMOVE REAR WHEEL
2. DISCONNECT REAR STABILIZER END BRACKET LH

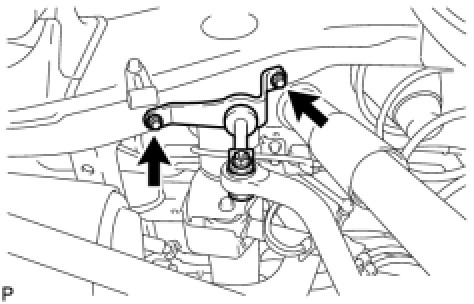

(a) Remove the 2 bolts and disconnect the stabilizer end bracket.
3. DISCONNECT REAR STABILIZER END BRACKET RH
HINT:
Use the same procedures described for the LH side.

4. REMOVE REAR STABILIZER BRACKET LH

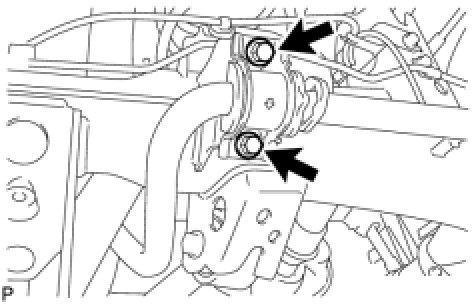

(a) Remove the 2 bolts and bracket.
5. REMOVE REAR STABILIZER BRACKET RH
HINT:
Use the same procedures described for the LH side.

6. REMOVE REAR STABILIZER BAR SUB-ASSEMBLY
(a) Remove the rear stabilizer bar from the vehicle.
(b) Remove the 2 rear stabilizer bushes from the rear stabilizer bar.
7. REMOVE STABILIZER LINK SUB-ASSEMBLY LH

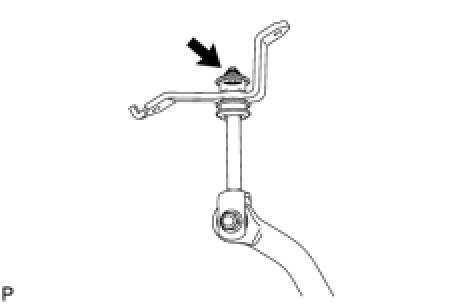

(a) Remove the nut, 2 retainers, 2 cushions and bracket from the stabilizer link.

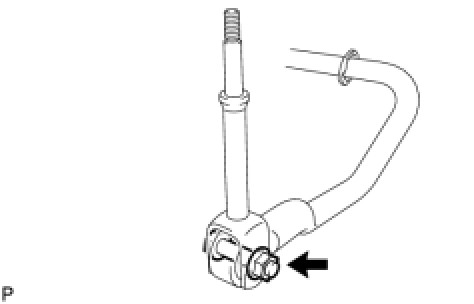

(b) Remove the nut, bolt and stabilizer link.
8. REMOVE STABILIZER LINK SUB-ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
