Height Control Sensor (for Rear Side)

SUSPENSION CONTROL: HEIGHT CONTROL SENSOR (for Rear Side): INSPECTION

1. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH





NOTICE:
Do not drop the height control sensor. If it is dropped, replace it with a new one.

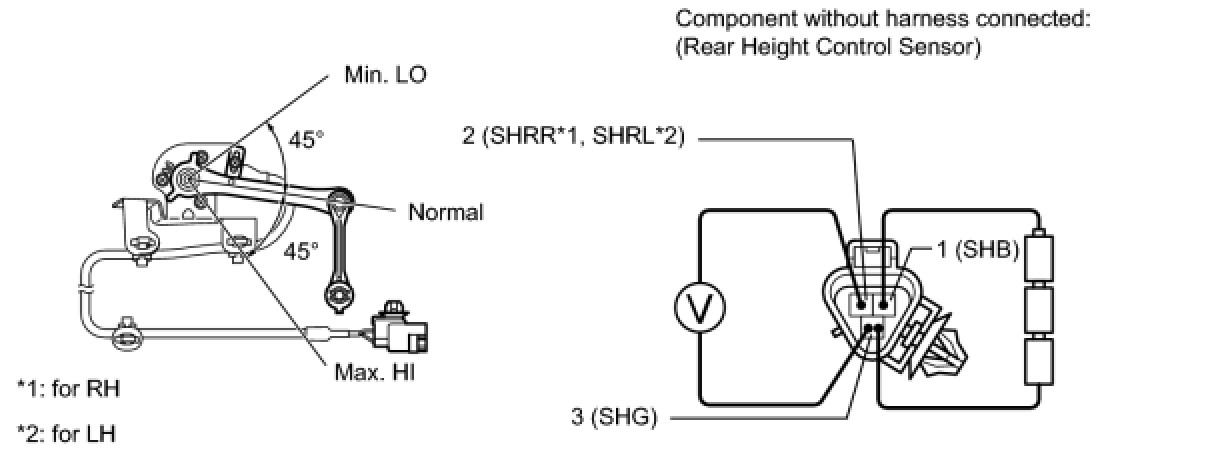

(a) Connect 3 dry batteries of 1.5 V in series.
(b) Connect the positive (+) end of the batteries to terminal 1 (SHB) of the height control sensor and the negative (-) end of the batteries to terminal 3 (SHG). While slowly moving the sensor link up and down, measure the voltage between terminal 2 (SHRR*1, SHRL*2) and terminal 3 (SHG).
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

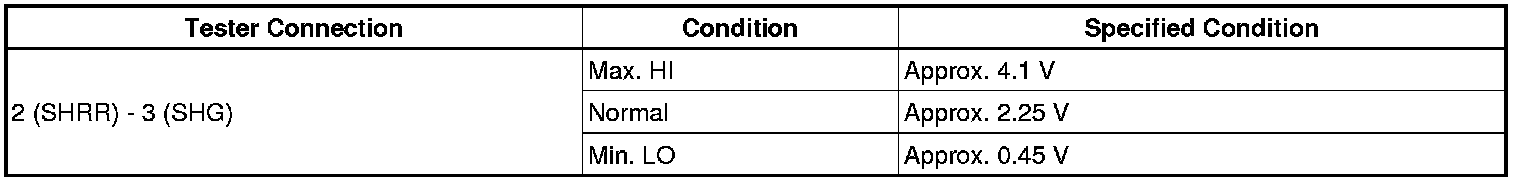

for RH

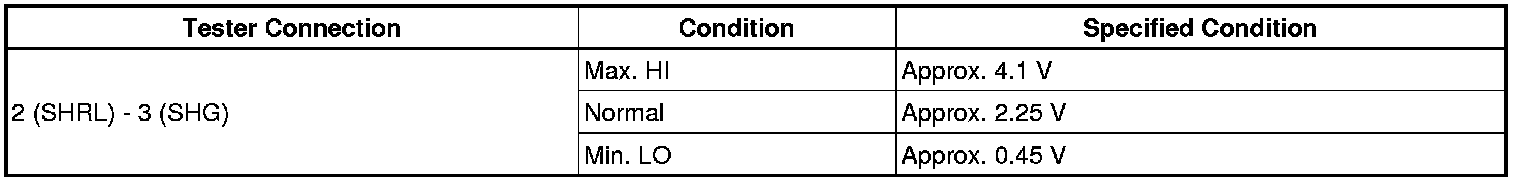

for LH





NOTICE:
Do not apply a voltage of higher than 6 V.
If the result is not as specified, replace the rear height control sensor assembly.
