Removal









REAR SUSPENSION: REAR LATERAL CONTROL ROD: REMOVAL

1. SUPPORT REAR AXLE HOUSING ASSEMBLY Removal

2. REMOVE REAR LATERAL CONTROL ROD ASSEMBLY

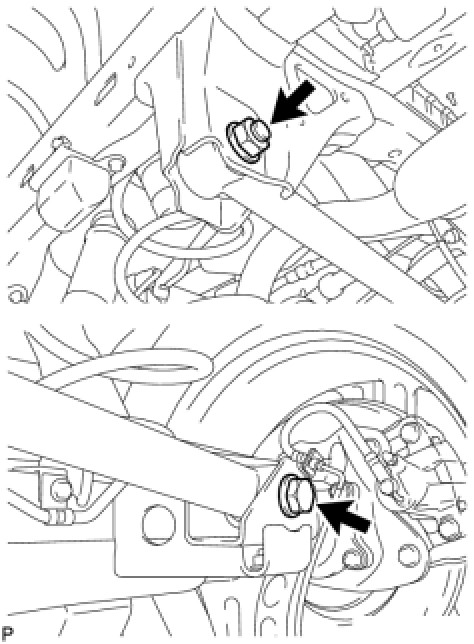

(a) Remove the 2 bolts, nut, washer and lateral control rod.
