Installation

REAR SUSPENSION: REAR LATERAL CONTROL ROD: INSTALLATION

1. TEMPORARILY INSTALL REAR LATERAL CONTROL ROD ASSEMBLY

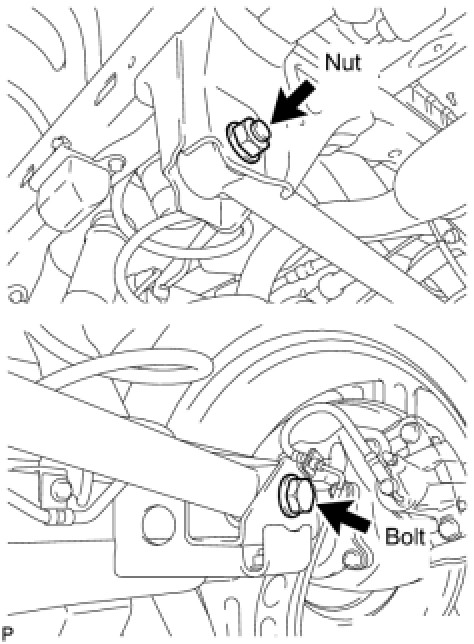

(a) Temporarily install the lateral control rod with the 2 bolts, washer and nut.
2. STABILIZE SUSPENSION Installation

3. TIGHTEN REAR LATERAL CONTROL ROD ASSEMBLY
(a) Tighten the bolt and nut.
Torque: 150 Nm (1530 kgf-cm, 111 ft-lbf)
NOTICE:
Perform this procedure with all 4 wheels on the ground.
